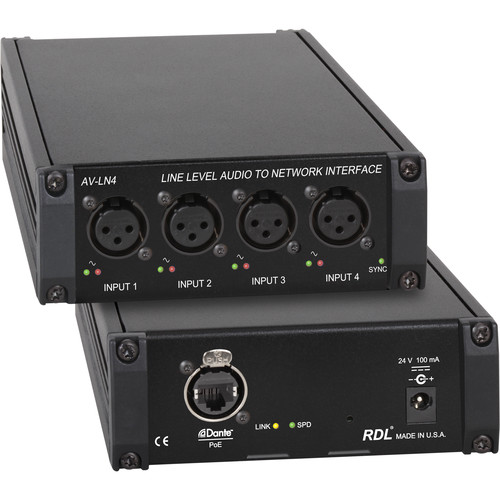

RDL AV-LN4 4-Channel Line-Level Audio to Dante Network Interface

Add to Wishlist
Key Features
  • Converts Line Signals to Dante Network
  • Up to 24-Bit / 48 kHz Resolution
  • 4 x XLR 3-Pin Line-Level Inputs
  • 1 x RJ45 Neutrik etherCON Output
  • Supports Balanced +4 dBu Analog Input
  • High-Grade, Low-Noise A/D Conversion
  • Power via PoE or 24 VDC Power Supply
  • Dual-LED VU Meter per Input
  • Durable Metal Enclosure
  • Made in the USA

3,499.00 د.إ

Add to Wishlist

The RDL AV-LN4 is a 4-channel line-level audio to Dante network interface designed to convert multiple line-level signals to Dante digital audio network channels for A/V technicians, system installers, and audio engineers in live stage applications and educational facilities. Its four XLR 3-pin female line-level inputs go through high-grade, low-noise A/D conversion at up to 24-bit / 48 kHz resolution, then feed the RJ45 Neutrik etherCON output port.

All inputs feature dual-LED VU meters and support for balanced +4 dBu analog audio. The AV-LN4 supports powering via a PoE network switch or a 24 VDC external power supply (available separately). Engineered and manufactured in the USA, it boasts a durable metal enclosure for reliable toughness.

  • Converts up to four line-level analog signals to Dante network audio channels
  • Four XLR 3-pin female inputs
  • Configuration requires no special software
  • Dante output via RJ45 Neutrik etherCON jack
  • Supports powering via PoE-enabled network switch or from a 24 VDC external power supply (available separately)
  • If PoE power and an external 24 VDC supply are both feeding the AV-LN4, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply
  • Valid power and synchronization to the Dante network is indicated by a green front-panel LED
  • Constructed in a durable all-metal enclosure suitable for free-standing, surface-mounted, or rack-mounted operation
  • Chassis design protects front-panel switches
  • Mountable on a mic stand via RDL SF-MSM1 adapter (available separately)
  • Includes mounting brackets for fixed installation
  • Engineered and manufactured in the USA for continuous duty in demanding installations
SKU: AV-LN4 Category: Tag:
Inputs
4 x XLR 3-Pin Female
Outputs
1 x RJ45 Neutrik etherCON
Ethernet Protocol
Dante
PoE
Class 0, IEEE 802.3af
Transmission Rate
100 Mb/s
Bit Depth
24
Sample Rates
44.1 or 48 kHz (Default)
Nominal Operating Level
-20 dBFS = +4 dBu
Reference Level
0 dBFS = +24 dBu
Maximum Input Level
+24 dBu
Input Impedance
>50 Kilohms
Frequency Response
20 Hz to 20 kHz (±0.1 dB)
THD + N
<0.025% (20 Hz to 20 kHz, +4 dBu / -20 dBFS)
0.005% at 1 kHz (Typical)
Noise
< -85 dB below +4 dBu
Common Mode Rejection Ratio
>70 dB (50 to 120 Hz)
Crosstalk
< -80 dB (20 Hz to 20 kHz at Operating Level, Any Input to Any Input)
< -85 dB (1 kHz)
Ambient Operating Environment
32 to 122°F / 0 to 50°C
Indicators
Front Panel: Sync, Dual-LED VU Meter
Rear Panel: Ethernet Link and Speed
Power Requirements
PoE Class 0, IEEE 802.3af or 24 VDC at 500 mA, Ground-Referenced
Enclosure Material
Metal
Dimensions
5.2 x 1.7 x 6″ / 13.2 x 4.3 x 15.2 cm
Weight
1.5 lb / 0.7 kg
Country of Manufacture
United States of America
Measurement Conditions
Gain/Level: ±1 dB
Source Termination: 150 Ohms
A/D Values: Measured in Digital Domain
Packaging Info
Package Weight
1.845 lb
Box Dimensions (LxWxH)
6.9 x 6.3 x 2.8″
