RDL AV-NH1 Dante Network to Stereo Headphone Amplifier

Add to Wishlist
Key Features
  • Converts Dante to Headphone Output
  • Up to 24-Bit/96 kHz Resolution
  • 1 x RJ45 Neutrik etherCON Input
  • 1/4″ & 3.5mm TRS Headphone Outputs
  • Adjustable Headphone Level
  • Power via PoE or 24 VDC Power Supply
  • LED Indicators for Sync & Ethernet
  • Durable Metal Enclosure
  • Made in the USA

AED2,799.00

Add to Wishlist

RDL AV-NH1 Overview

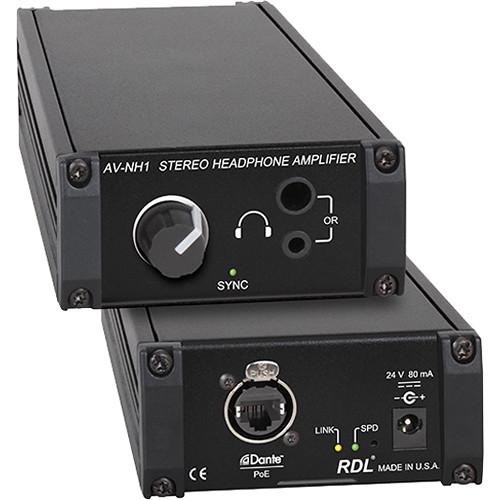

The RDL AV-NH1 is a Dante network to stereo headphone amplifier designed to convert two Dante digital audio network channels to a stereo analog headphone output for A/V technicians, system installers, and audio engineers in live stage applications, studios, and educational facilities. It accepts a Dante stream at up to 24-bit/96 kHz via an RJ45 Neutrik etherCON port, then outputs analog signal to the 1/4″ and 3.5mm TRS headphone jacks, which share an adjustable level control.

The AV-NH1 supports powering via a PoE network switch or a 24 VDC external power supply (available separately). LED indicators are provided for sync status as well as Ethernet link and speed. Engineered and manufactured in the USA, it boasts a durable metal enclosure for reliable toughness.

  • Converts two Dante network audio channels to a stereo headphone output
  • Configuration requires no special software
  • Dante input via RJ45 Neutrik etherCON jack
  • 1/4″ and 3.5mm TRS stereo headphone outputs
  • Front-panel headphone level adjustment
  • Supports powering via PoE-enabled network switch or from a 24 VDC external power supply (available separately)
  • If PoE power and an external 24 VDC supply are both feeding the AV-XMN4, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply
  • Valid power and synchronization to the Dante network is indicated by a green front-panel LED
  • Constructed in a durable all-metal enclosure suitable for free-standing, surface-mounted, or rack-mounted operation
  • Mountable on a mic stand via RDL SF-MSM1 adapter (available separately)
  • Includes mounting brackets for fixed installation
  • Engineered and manufactured in the USA for continuous duty in demanding installations
SKU: AV-NH1 Category: Tag:
Inputs
1 x RJ45 Neutrik etherCON
Outputs
1 x 1/4″ TRS headphone output
1 x 1/8″ / 3.5 mm TRS mini jack
Ethernet Protocol
Dante
PoE
Class 0, IEEE 802.3af
Transmission Rate
100 Mb/s
Bit Depth
24
Sample Rates
44.1, 48 (default), 88.2, and 96 kHz
Reference Level
0 dBFS = 150 mW into 100 Ohms
Maximum Output Level
150 mW into 100 Ohms
Output Impedance
< 50 Ohms
Frequency Response
20 Hz to 20 kHz (±0.5 dB)
THD + N
< 0.05% (20 Hz to 20 kHz, -20 dBFS)
0.015% at 1 kHz (typical)
Noise
Below 0 dBFS: < -95 dB
Below -20 dBFS: < -75 dB
Crosstalk
< -80 dB (1 kHz, -20 dBFS)
Headroom
20 dB (above -20 dBFS)
Ambient Operating Environment
32 to 122°F / 0 to 50°C
Indicators
Front-Panel: Sync
Rear-Panel: Ethernet link and speed
Power Requirements
PoE Class 0, IEEE 802.3af or 24 VDC at 80 mA, ground-referenced
Enclosure Material
Metal
Dimensions
4.2 x 1.7 x 6.3″ / 10.7 x 4.3 x 16.0 cm
Weight
1.2 lb / 0.5 kg
Country of Manufacture
United States of America
Measurement Conditions
Gain/Level: ±1 dB
Packaging Info
Package Weight
1.5 lb
Box Dimensions (LxWxH)
7.3 x 5.1 x 2.4″
