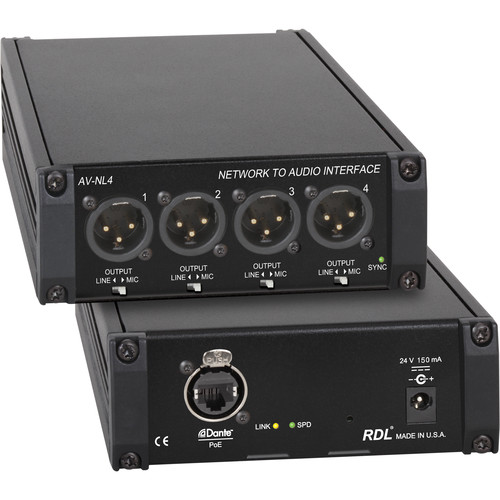

RDL AV-NL4 Dante Network to Audio Interface

Add to Wishlist
Key Features
  • Converts 4 Dante Network Audio Signals
  • Converts to Four Balanced XLR Outputs
  • Selectable Sample Rates
  • Each Output Is Switchable to Mic / Line
  • Protection for Phantom Voltage up to 48V
  • No Special Software Required for Set Up
  • Low Noise and Low Distortion Performance
  • High-Resolution 24-Bit Converters
  • Powered via PoE or Optional Power Supply
  • Includes Mounting Bracket

AED3,199.00

Add to Wishlist

RDL AV-NL4 Overview

Audio professionals in search of a network to audio interface will be impressed with the RDL AV-NL4, an interface that converts four Dante network audio channels to four balanced audio outputs on XLR connectors.

Each channel provides +4 dBu for a network digital audio level of -20 dBFS, while each output can be set to line level or attenuated by 50 dB for use with mic-level signals. No special software required to configure the module. The AV-NL4 is powered from a PoE enabled network switch or via an external 24 VDC power supply (sold separately).

The AV-NL4 is constructed from a durable, all-metal enclosure that’s suitable for use on stage, in the studio, or mounted to any flat surface with the included mounting brackets.

  • Converts four Dante network audio signals to balanced analog
  • Selectable Dante sample rates: 44.1, 48, 88.2, and 96 kHz
  • Each output switch-selectable for mic or line Level
  • Normal (-20 dBFS) line-level output is +4 dBu with 20 dB headroom
  • Microphone output level is attenuated by 50 dB
  • Each output is protected against phantom voltage up to 48 VDC
  • Special software not required for module setup
  • Exceptional low-noise and low-distortion performance
  • High-resolution 24-bit digital to analog conversion
  • Legendary RDL analog filtering enhances superb audio performance
  • LED Indicator for valid power and network sync
  • Operation from PoE power (Class 0, IEEE 802.3af) or optional external 24 VDC power supply
  • Mounts on a microphone stand using an optional RDL SF-MSM1
  • Includes mounting bracket
SKU: AV-NL4 Category: Tag:
Network Connectors
RJ45 Neutrik etherCON-Style
Network Protocol
Dante
Sample Rates
44.1, 48 (Default), 88.2, 96 kHz
Bit Depth
24-Bit
Operating Level
-20 dBFS = +4 dBu
Reference Level
0 dBFS = +24 dBu
Outputs
4 x XLR Male
Output Level
Operating: +4 dBu Nominal Line Level Balanced; -45 dBu Nominal Mic Level (into 150 Ohms)
Maximum): +24 dBu Line Level
Output Impedance
<100 Ohms Balanced
Mic/Line Switch
Yes, per Output
Frequency Response
20 Hz to 20 kHz (± 0.5 dB)
THD + N
< 0.1% (20 Hz to 20 kHz, +4 dBu/-20 dBFS); 0.015% at 1 kHz (Typ)
Noise
< -75 dB (Below +4 dBu); < -95 (Below +24 dBu)
Crosstalk
Below Noise Floor (1 kHz, Output to Output); < -60 d5 dB (20 kHz)
Headroom
Headroom Above +4 dBu/-20 dBFS: 20 dB
Indicator
3 x Indicators (Ethernet Link and Speed (2, Rear Panel); Sync (Front Panel)
Gain
Gain/Level: ±1 dB
Ambient Operating Environment
32 to 122°F / 0 to 50°C
Power
PoE Class 0, IEEE 802.3af, or 24 VDC at 150 mA, Ground-Referenced
Dimensions
5.2 x 1.7 x 6″ / 13.2 x 4.3 x 15.2 cm
Weight
1.5 lb / 0.7 kg
Packaging Info
Package Weight
1.89 lb
Box Dimensions (LxWxH)
6.7 x 6.3 x 2.6″
