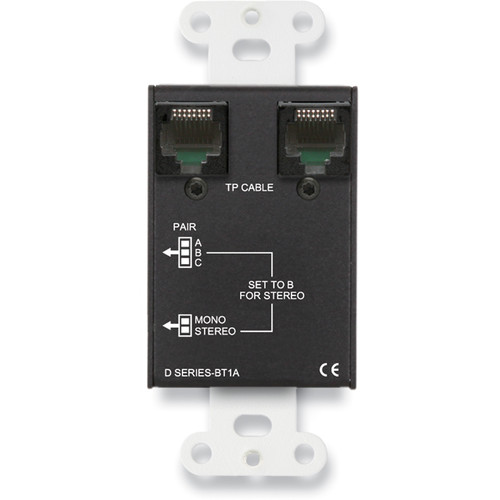

RDL D-BT1A Wall-Mounted Bluetooth Audio Format-A Interface (White)

Add to Wishlist
Key Features
  • Bluetooth Audio In for Installed Sound
  • 1-Button Pairing with LED Indication
  • Setup Requires No Special Software
  • Sends to RDL Format-A Receivers
  • Mono Summed or Stereo Audio Input Mode
  • Selectable RJ45 Pair Source
  • Supports Daisy-Chaining Multiple Modules
  • Remotely Powered via Twisted Pair Cable

1,999.00 د.إ

Add to Wishlist

The white RDL D-BT1A is a wall-mounted Bluetooth audio Format-A interface offering a sleek solution for integrating Bluetooth audio sources into installed sound systems in fitness facilities, retail stores, restaurants, and more. Since it requires no special software to configure and boasts 1-button pairing with LED indication, the D-BT1A is simple and quick to set up.

Equipped with two RJ45 ports, the D-BT1A can either send received Bluetooth audio in mono or stereo directly to an RDL Format-A receiver (available separately) or daisy-chain in mono with two other D-Series BT1A modules (available separately) to a single Format-A receiver.

The D-BT1A is remotely powered through twisted pair cable and features signal and power pair pass-through on RJ45 jacks, eliminating the need for individual external power sources.

  • Bluetooth audio input for installed sound system
  • Intuitive single-button pairing with LED status indication
  • Special software not required for module setup
  • Customize the module ID name and programming password through the Bluetooth connection
  • Sends received Bluetooth audio to RDL Format-A receivers
  • Mono summed or stereo audio input mode is switch-selectable on rear panel
  • Rear-panel switch selects which RJ45 pair (A, B, or C) is fed in mono summed mode
  • Daisy-chain up to three D-Series BT1A modules to one Format-A receiver in mono mode
  • Remotely powered through twisted pair cable
  • Signal and power pair pass-through on RJ45 jacks
SKU: D-BT1A Category: Tag:
Input
RJ45 Loop In
Output
RJ45 RDL Format-A
Format
A, B, or C (Summed Mono Mode, Rear-Panel Switch-Selectable)
B and C (Stereo Mode, Pair A Pass-Through)
Frequency Response
20 Hz to 20 kHz (±0.5 dB)
THD + N
<0.1%
Noise
< -70 dB (Below -20 dBFS)
Crosstalk
<70 dB (Channel to Channel)
Operating Level
-20 dBFS = +4 dBu (Balanced, Nominal)
Operating Temperature
32 to 104°F / 0 to 40°C
Power Requirement
24 VDC at 100 mA via RJ45
Dimensions
1.7 x 4.1 x 1.6″ / 4.4 x 10.4 x 4.1 cm
Weight
0.3 lb / 0.1 kg
Packaging Info
Package Weight
0.46 lb
Box Dimensions (LxWxH)
4.9 x 4.3 x 2.2″
