RDL DDS-BTN44 Wallmount Bidirectional Line-Level and Bluetooth Audio Dante Interface (Stainless Steel)

Add to Wishlist
Key Features
  • Bluetooth Audio Input for Dante Network
  • Audio Input via 3.5mm and RCA Jacks
  • Return Audio Talk Channel
  • 3.5mm Front-Panel Audio Output
  • Balanced/Unbalanced Euroblock Output
  • Mono Summed or Stereo Audio Input Mode
  • 1-Button Pairing with LED Indication
  • Setup Requires No Special Software
  • Customizable Module ID Name and Settings
  • Powered via PoE

AED4,799.00

Add to Wishlist

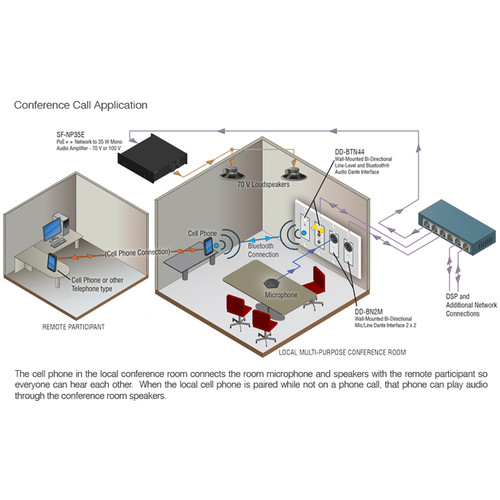

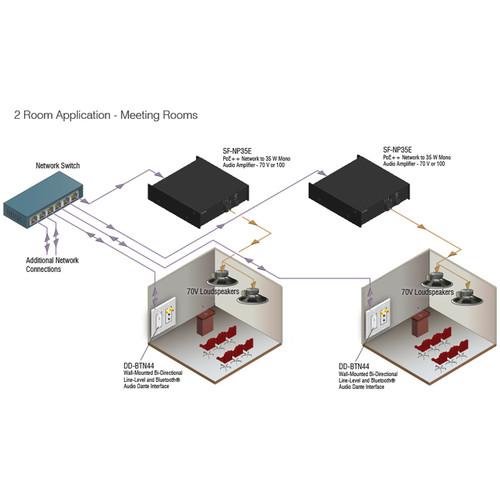

Easily integrate Bluetooth audio and stereo analog sources into your Dante network with the stainless steel RDL DDS-BTN44, a wall-mounted bidirectional audio interface offering a sleek solution for installed sound systems in conference spaces, meeting rooms, offices, and more. Since it requires no special software to configure and boasts 1-button pairing with LED indication, the DDS-BTN44 is simple and quick to set up.

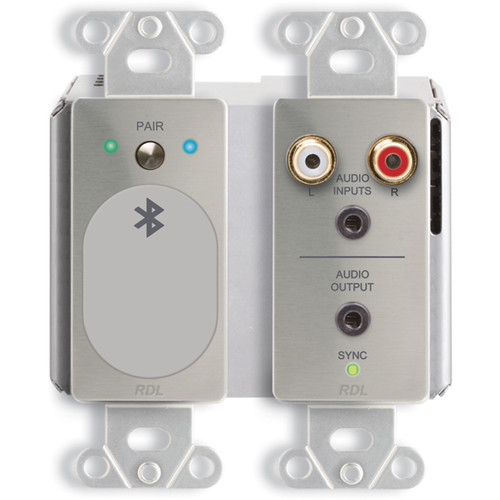

In addition to the Bluetooth input, the module is equipped with 3.5mm mini-jack and stereo RCA input ports as well as selectable stereo or summed mono input modes, allowing it to accept analog audio from a variety of consumer devices such as MP3 and CD players or a Bluetooth audio stream from a smartphone, tablet, or computer. Outputs include a 3.5mm stereo mini jack on the front panel and a rear-panel Euroblock that accommodates balanced or unbalanced wiring.

Wallmount Audio Interfaces
The D Series BTN44 modules are Dante networked, wall-mounted audio interfaces that include bidirectional Bluetooth audio, unbalanced analog stereo/mono audio inputs and outputs, and a balanced/unbalanced line-level output. Stereo audio from a compatible Bluetooth-enabled device feeds two Dante network audio channels. Stereo audio connected to a front-panel mini-jack or left and right RCA jacks feeds two other Dante network audio channels.
Stereo Audio Output

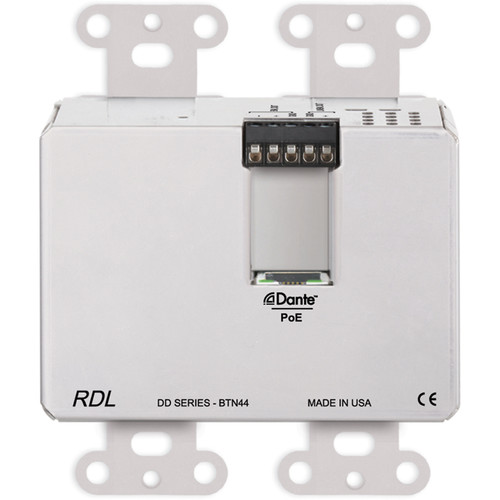

Stereo audio output is available through a front-panel 3.5mm TRS mini jack fed from two Dante network channels. A rear-panel terminal block provides either a balanced (+4 dBu) or unbalanced (-10 dBV) output from one Dante network channel. That output may feed a variety of RDL wall panels to provide a specific mic- or line-level output to users, or it may be used to feed the audio power amplifier in the associated audio zone. One Dante channel may be routed back to a connected device through the Bluetooth interface enabling full-duplex communication.

Powered via PoE

The D Series BTN44 modules are powered from PoE. The installer can customize the module name and programming password through the Bluetooth connection using a smartphone, computer, or tablet terminal program. These modules feature studio-quality circuits and analog filters to provide audio performance exceeding expectations from consumer interface technologies. High performance, simplicity of operation, and efficiency of installation make the D Series BTN44 modules an ideal value in professional Bluetooth interfaces.
SKU: DDS-BTN44 Category: Tag:
Inputs
1 x 1/8″ / 3.5 mm TRS Unbalanced Stereo Mini-Jack Input
1 x 2RCA Coaxial Unbalanced Stereo Input
Outputs
1 x 1/8″ / 3.5 mm TRS Unbalanced Stereo Mini-Jack Output
1 x Euroblock 5-Pin Balanced/Unbalanced Mic/Line Output
Network Port
1 x RJ45 Female
Ethernet Protocol
Digital Audio: Dante
Transmission Rate
100 Mb/s
Sample Rates
44.1 and 48 kHz
Bit Depth
24-Bit
Operating Level
-20 dBFS = +4 dBu (Balanced) or -20 dBFS = -10 dBV (Unbalanced), Nominal
Frequency Response
Bluetooth to Network Interface: 20 Hz to 20 kHz (±0.5 dB)
Network to Mini-Jack Output: 20 Hz to 20 kHz (±0.75 dB)
Network to Line Output: 20 Hz to 20 kHz (±0.5 dB)
Line Inputs to Network Interface: 20 Hz to 20 kHz (±0.25 dB)
THD + N
Bluetooth to Network Interface: < 0.1%
Network to Mini-Jack Output: < 0.05%
Network to Line Output: < 0.05%
Line Inputs to Network Interface: < 0.05%
Noise
Bluetooth to Network Interface: < -70 dB (Noise below -20 dBFS)
Network to Mini-Jack Output: < -80 dB (Noise below -20 dBFS)
Network to Line Output: < -80 dB (Noise below -20 dBFS)
Line Inputs to Network Interface: < -75 dB (Noise below -20 dBFS)
Crosstalk
Network to Mini-Jack Output: <80 dB (1 kHz); <65 dB (20 kHz)
Line Inputs to Network Interface: <75 dB
Power Requirements
PoE
PoE Class
Class 0, IEEE 802.3af
Operating Temperature
32 to 104°F / 0 to 40°C
Dimensions
3.5 x 4.1 x 2.1″ / 8.9 x 10.4 x 5.3 cm
Weight
0.8 lb / 0.4 kg
Packaging Info
Package Weight
1.125 lb
Box Dimensions (LxWxH)
6.8 x 6.2 x 2.8″
