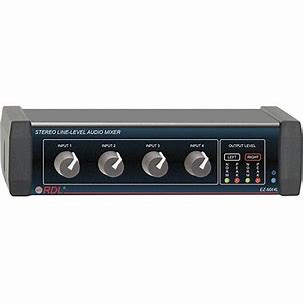

RDL EZ-MX4L Stereo 4-Channel, Line-Level Mixer

Add to Wishlist
  • 4 Line-Level Stereo Sources
  • Level Controls for Each Channel
  • Gold-Plated RCA Input & Output Jacks
  • 1/3 Rack Space Size
  • 2-Segment LED VU Meters on Stereo Output
  • 3.5mm Input & Output
  • Made in the USA

د.إ1,199.00

Add to Wishlist

The RDL EZ-MX4L Stereo 4-Channel, Line-Level Mixer is a suitable solution for anyone who needs to attach multiple devices into a single input. For example, if you have an MP3 player, a laptop, and a Blu-Ray player with stereo outputs, the EZ-MX4L will allow you to connect them all to a single input on a speaker/amplifier (such as a home stereo system or powered computer speakers).

The EZ-MX4L features 4 gold-plated stereo RCA inputs. Channel 4 also features a stereo 3.5mm mini-plug input. Each of these four inputs has a level control knob on the front panel.

The output of the EZ-MX4L gives you the option of connecting with stereo RCA jacks or with a stereo 3.5mm mini-plug output. The EZ-MX4L operates with standard AC power and can simplify mixing multiple signals into a home entertainment system, a multimedia set up, or any situation that requires combining a few line-level stereo signals.



Compact, 4-channel, line-level mixer with four gold-plated stereo RCA inputs, and one stereo 3.5mm mini-plug input
2-segment VU meters on both the left and right stereo outputs
Simple operation with 4 volume knobs (one for each input) on the front panel
Gives you the option of connecting the master output with either stereo RCA jacks or a stereo 3.5mm mini-plug output
Operates with standard AC power
Made in the USA with quality Radio Design Labs craftsmanship
SKU: EZ-MX4L 1 Category: Tag:
Input Connections
4 x Unbalanced RCA line-level inputs (stereo pairs)
1 x Unbalanced stereo 1/8″ / 3.5 mm mini-plug input
Impedance
> 10 kOhms (-10 dBV nominal on RCA input jacks)
Output Connectors
1 x unbalanced RCA line-level output (stereo pair)
1 x unbalanced stereo 1/8″ / 3.5 mm mini-plug output
Level Controls
Off to 12 dB range
Max Input/Output Gain
+20 dBV
Frequency Response
10 Hz to 20 kHz (±0.01 dB, Line)
THD & Noise
< 0.05%
Noise
< -85 dB (Below -10 dBV Output)
Power
24 VDC PSU, 30 mA (idle), 60 mA (max)
Dimensions
5.8 x 3.0 x 1.5 / 14.6 x 7.6 x 3.7 cm
Weight
0.6 lb / 0.3 kg
Packaging Info
Package Weight
1 lb
Box Dimensions (LxWxH)
10.2 x 7.3 x 2.4″
