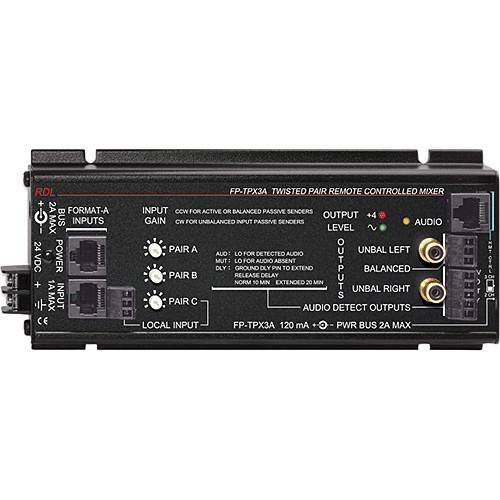

RDL FP-TPX3A Format-A Twisted Pair Remote Controlled Mixer

Add to Wishlist
  • 3-Channel VCA Controlled Audio Mixing
  • Controls Multiple Sources Within a Zone
  • Connections via Format-A Twisted Pairs
  • Balanced or Unbalanced Inputs
  • Microphone or Line Switchable Inputs
  • LED Audio Detector

AED2,399.00

Add to Wishlist

TheĀ RDL FP-TPX3A Format-A Twisted Pair Remote Controlled MixerĀ is a 3-channel audio mixer used for controlling multiple sound sources within zones in commercial PA and paging audio systems. The FP-TPX3A features 3 inputs that may be used as balanced or unbalanced, microphone or line level connections, and phantom power is sent to microphones and sources that require it. Connections are made over Format-A twisted pair inputs, and a pair of unbalanced RCA outputs are also featured. The Audio Detect Outputs feature an LED that detects output signal, as well as trigger outputs that automatically start/shut down compatible audio gear, in order to maximize energy efficiency and preserve the life span of the connected audio sources.

3ā€‘Channel remoteā€‘controlled audio mixer
VCA level control for each input pair
Formatā€‘A twisted pair inputs
One detachable balanced and two RCA unbalanced mono outputs
Twisted pair interconnection to remote control
Directly controlled by RDL remote controls with 2 or 3 channels
Local input available if only two twisted pair inputs used
Paging source may connect to local input
Frontā€‘panel gain trim matches active or passive Formatā€‘A senders
Dualā€‘LED VU meter displays mixer output level
Audio presence detector controls openā€‘collector outputs
Detector outputs intended to enable power amplifiers or system power
Energy savings possible using detector outputs
Selectable 10 or 20 minute detector release delay
SKU: FP-TPX3A Category: Tag:
Inputs
RDL FORMATā€‘A; Balanced line level
Connections: RJ45 (FORMATā€‘A); Detachable Terminal Block (Pair C)
Outputs
150 Ī© balanced; 1 kĪ© unbalanced (2)
Connections: Detachable Terminal Block (balanced); RCA Phono Jacks (unbalanced)
Output Level
+4 dBu balanced, ā€‘10 dBV unbalanced
Frequency Response
20Hz to 20kHz (+/ā€‘ 0.25 dB)
THD
< 0.05% (20 Hz to 20 kHz); <0.02% (1 kHz)
Noise
< ā€‘100 dB (all channels off); <ā€‘75 dB (any channel on); <ā€‘70 dB (all channels on)
Headroom
> 18 dB
CMRR
> 80 dB (50 Hz to 150 Hz)
Attenuation / Gain
VCA attenuation: >90 dB (each input, remote control volume off)
Indicators
Dualā€‘LED VU meter (2); Audio present (threshold = 35 dB below +4 dBu output)
Power
Power Connections (3): Terminal block; DC power jack (2)
Power Requirement: 24VDC @ 120 mA plus connected FORMATā€‘A sender currents
Dimensions
1.42 x 3.25 x 8.14″ (3.61 x 8.26 x 20.68cm)
Packaging Info
Package Weight
1.16 lb
