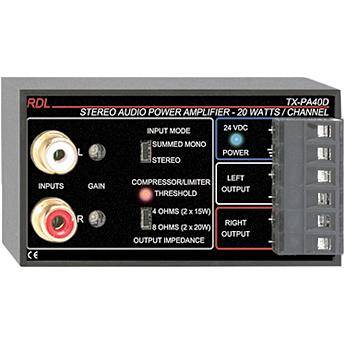

RDL TX-PA40D – 40 Watt Stereo Amplifier

Add to Wishlist
Key Features
  • 4 and 8 Ohm Operation
  • 40 Watts
  • Built-in Compressor Limiter
  • Gold Platted RCA Jacks

1,599.00 د.إ

Add to Wishlist

The RDL TX-PA40D 40 Watt Stereo Amplifier is a compact, yet powerful solution for driving 4 or 8 ohm speakers. The TX-PA40D is well suited for applications where fixed amplification is needed, and variable gain is provided from the source. For example, the TX-PA40D may be used as a fixed amplifier for a projector, mixer or tuner. There is a built-in compressor limiter that provides up to 20dB of gain reduction to avoid distortion and peaking. Additional features include gold, plated RCA connections, mono summing switch Power and Clip LED metering.

Stereo Audio Power Amplifier
20 Watts RMS per Channel into 8 ohms – 40 Watts Total
15 Watts RMS per Channel into 4 ohms – 30 Watts Total
Left and Right Unbalanced Phono Jack Inputs
Switch-Selectable Stereo or Mono Operation
Studio Quality, Aurally Transparent Compressor/Limiter
Compressor/Limiter Controls Clipping
Compressor Produces Maximized Average Output Power
Compression Enabled Using Input Level Adjustments
LED to Indicate Audio Compression Threshold
Outputs Drive 4 or 8 Ohm Speakers
High-Efficiency Class D Operation
Thermal and Short-Circuit Protection
TX-PA40D includes North American Cord; TX-PA40DE excludes Power Cord
SKU: TX-PA40DE Category: Tag:
Key Specs
Number of Channels
2
Amplifier Power Rating
8 Ohms:
20 W RMS per Channel
4 Ohms:
15 W RMS per Channel
Amplifier Power Rating
8 Ohms:
20 W RMS per Channel
4 Ohms:
15 W RMS per Channel
Performance
Frequency Response
20 Hz to 20 kHz ±1 dB
Input Impedance
10 Kilohms (Balanced)
SNR
< 75 dB
THD+N
4 / 8 Ohms:
< 0.1% (1 kHz, at 1 W)
8 Ohms:
< 1% (Full Range)
Crosstalk
> 60 dB (1 kHz)
Signal Processing
Compressor
Yes
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
AC Power Connector
IEC
Current Consumption
1.5 A
Physical
Display & Indicators
Red LED (Compressor)
Blue LED (Power)
Packaging Info
Package Weight
1.35 lb
Box Dimensions (LxWxH)
6 x 5.2 x 2.6″
