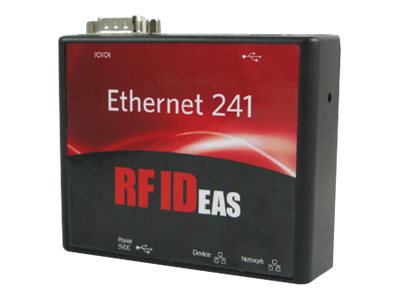

rf IDEAS WAVE ID Plus Keystroke Black Reader with Ethernet 241 – network adapter – USB / RS-232 – 10/100 Ethernet x 2
rf IDEAS WAVE ID Plus Keystroke Black Reader with Ethernet 241 – Network adapter – USB / RS-232 – 10/100 Ethernet x 2 – with RF Ideas pcProx Plus Enroll Black USB Reader
AED1,899.00
RF IDeas designed the Ethernet 241 to allow the card reader and application device to simultaneously communicate via an Ethernet connection, using a single network drop. The Ethernet 241 is designed to act as a two-port switch that provides a pass-thru Ethernet port for a printer and a second Ethernet port that is built into the device.
The 241 has two Ethernet connectors designated as the Network port and Printer port. The device also provides one RS-232 DB9 port that is intended for RF IDeas’ pcProx card readers that are powered through Pin 9 connectors (part numbers ending in AK5) and one 5 VDC port that is used to supply power to the unit via the supplied power adapter.
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | External |
| Bundled with | RF Ideas pcProx Plus Enroll Black USB Reader |
| Interface (Bus) Type | USB / serial RS-232 |
| Networking | |
| Ports | 10/100 Ethernet x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Status Indicators | Power, error |
| Features | DHCP support, auto-negotiation, half duplex mode, full duplex mode |
| Expansion / Connectivity | |
| Interfaces | 2 x 100Base-TX – RJ-45 |
| Miscellaneous | Compliant Standards: C-Tick, IC, FCC |
| Power | |
| Power Device | External |
| Dimensions & Weight | |
| Width | 3.9 in |
| Depth | 3.1 in |
| Height | 1 in |
| Weight | 3.95 oz |
