rf IDEAS WAVE ID Plus Keystroke HID iCLASS SE Black Reader with Ethernet 241 – network adapter – USB / RS-232 – 10/100 Ethernet x 2
rf IDEAS WAVE ID Plus Keystroke HID iCLASS SE Black Reader with Ethernet 241 – Network adapter – USB / RS-232 – 10/100 Ethernet x 2 – with RF Ideas pcProx Plus iCLASS ID & SE USB reader
1,999.00 د.إ

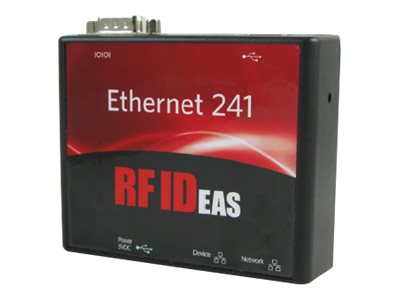

RF IDeas designed the Ethernet 241 to allow the card reader and application device to simultaneously communicate via an Ethernet connection, using a single network drop. The Ethernet 241 is designed to act as a two-port switch that provides a pass-thru Ethernet port for a printer and a second Ethernet port that is built into the device.
The 241 has two Ethernet connectors designated as the Network port and Printer port. The device also provides one RS-232 DB9 port that is intended for RF IDeas’ pcProx card readers that are powered through Pin 9 connectors (part numbers ending in AK5) and one 5 VDC port that is used to supply power to the unit via the supplied power adapter.
| General |
| Device Type | Network adapter |
| Form Factor | External |
| Bundled with | RF Ideas pcProx Plus iCLASS ID & SE USB reader |
| Interface (Bus) Type | USB / serial RS-232 |
| Networking |
| Ports | 10/100 Ethernet x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Status Indicators | Power, error |
| Features | DHCP support, auto-negotiation, half duplex mode, full duplex mode |
| Expansion / Connectivity |
| Interfaces | 2 x 100Base-TX – RJ-45 |
| Miscellaneous |
| Compliant Standards | C-Tick, IC, FCC |
| Power |
| Power Device | External |
| Dimensions & Weight |
| Width | 3.9 in |
| Depth | 3.1 in |
| Height | 1 in |
| Weight | 3.95 oz |
There are no reviews yet.
