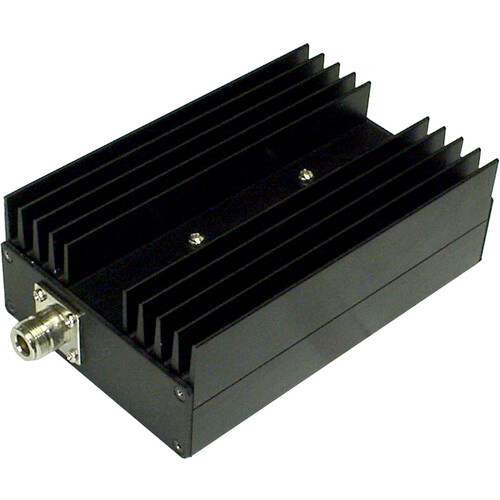

RF-Links 1240 MHz / 22 W Military-Grade RF Linear Amplifier

Add to Wishlist
Key Features
  • RF Amplifier for 1240 MHz TV Transmitter
  • 250 mW Input Power, 22W Power Output
  • 50 Ohms RF Input/Output
  • 12.6V Power Supply
  • Requires Separate Cooling Source
  • Professional, Military-Grade Testing

د.إ4,999.00

Add to Wishlist

RF-Links AMP-1200HPBX Overview

Add a powerful but compact RF amplifier to your 1240 MHz TV transmitter with this 1240 MHz / 22 W Military-Grade RF Linear Amplifier from RF-Links. The compact amplifier has been tested for professional, military-grade operation and provides 50 ohm RF input and output and up to 22W RF power output. It supports transmitters in the 1240 to 1300 MHz broadband frequency range and doesn’t require any tuning or adjustment.

SKU: AMP-1200HPBX Category: Tag:
General
Connectors
1 x F-Type RF Input
1 x F-Type RF Output
Power Supply
12 to 14 V
RF Power
22 W
Input Power
250 mW Maximum
Current Consumption
7 A
RF Input Impedance
50 Ohms
RF Output Impedance
50 Ohms
Frequency Range
1240 to 1300 MHz
Gain
26 dB / 1200 MHz
Physical
Dimensions
6 x 4 x 2″ / 15.2 x 10.2 x 5.1 cm
Weight
Not Specified by Manufacturer
