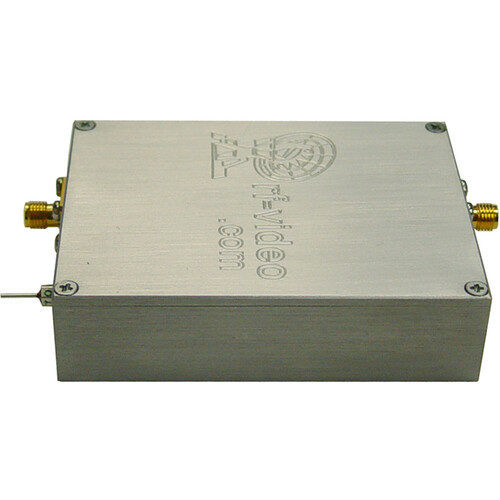

RF-Links 15W RF Amplifier Module in Class A (900 MHz)

Add to Wishlist
Key Features
  • Linear Amplifier for Video/Mobile Radio
  • 890-928 MHz Frequency Range
  • 50 Ohms RF Input/Output
  • 15W Output Power, 30 dB Maximum Gain
  • Built-In Band Pass Filter for 900 MHz

AED3,499.00

Add to Wishlist

RF-Links AMP900-15 Overview

Add a powerful but compact wideband linear amplifier to your video receiver with this 15W RF Amplifier Module in Class A from RF-Links. The compact amplifier provides 50-ohm RF input, 15W output power with only 1mW of input power, and features male SMA I/O connectors. It supports transmitters in the 890 to 928 MHz frequency range using built-in 900 MHz band pass filter, and it doesn’t require any tuning or adjustment. It provides a signal gain of 30 dB.

Applications
  • Experiments
  • Video Surveillance
  • Mobile Radio Applications
SKU: AMP900-15 Category: Tag:
General
Compatibility
Not Specified by Manufacturer
Operating Frequency
890 to 928 MHz
Operating Class
Linear AB
RF Power
15 W
Input Power
1 mW
Impedance
50 Ohms Input/Output
Gain
30 dB
Inputs / Outputs
Video I/O
1x SMA Input
1x SMA Output
Power
Power Source
Proprietary Interface
DC Input Power
12 VDC at 2.5 A
Operating Temperature
-8 to 107°F / -40 to 75°C
Physical
Dimensions
3.25 x 2.5 x 0.8″ / 82.55 x 63.5 x 20.3 mm
Weight
7.1 oz / 200 g
