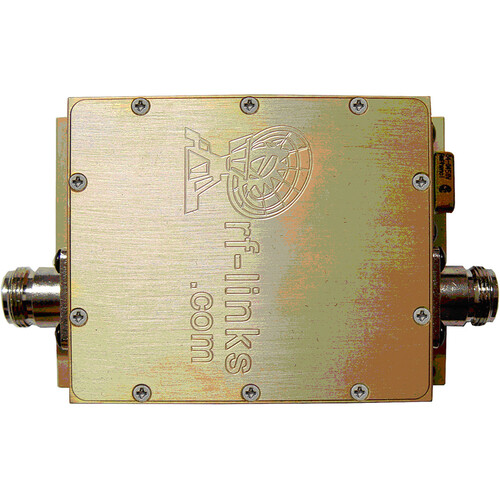

RF-Links High-Gain TV UHF Linear 60W Amplifier (400-530 MHz, AB Mobile Unit)


Key Features
  • High-Gain Linear AB RF Amplifier
  • For Wideband UHF TV Broadcasts
  • 60W Power Output, 27 dB Maximum Gain
  • 400-530 MHz Frequency Range
  • 50 Ohms RF Input/Output, SMA Female

AED3,599.00

RF-Links ZHS-4053-60Ā Overview

Add a powerful but compact, high-power linear AB RF amplifier to your TV broadcast stage or mobile platform with thisĀ High-Gain TV UHF Linear 60W AmplifierĀ fromĀ RF-Links. The amplifier has been designed for professional UHF wideband applications and it has a built-in UHF filter. It provides 50-ohm RF input and output, 27 dB gain, and up to 60W RF power output. It supports transmitters in the 400 to 530 MHz broadband frequency range. This unit features SMA female input and output.

Key Features
  • Ideal for UHF TV wideband and testing applications
  • 400 to 530 MHz frequency range
  • 60W output power
  • Compact, lightweight, rugged, and reliable
  • 50-ohm input/output impedance
SKU: ZHS-4053-60 Category: Tag:
General
Operating Frequency Range
400 to 530 MHz
Output Power
60 W
Gain
27 dB
Impedance
50 Ohms (Input/Output)
Inputs / Outputs
Video I/O
1x SMA Input
1x SMA Output
Power
Power Source
Proprietary Interface
DC Input Power
12 to 14 VDC at 8 A
Physical
Dimensions
3.5 x 2.9 x 0.6″ / 8.9 x 7.4 x 1.5Ā cm
Weight
Not Specified by Manufacturer
