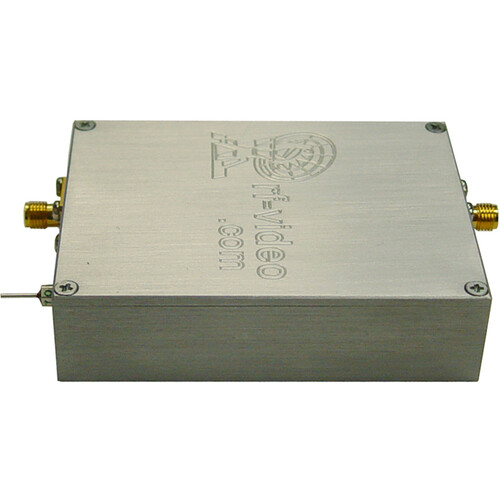

RF-Links High-Gain UHF Linear Amplifier Class A (750-890 MHz)

Add to Wishlist
Key Features
  • For Small TV Stations, Stages & Studios
  • Linear UHF Amplifier for Video Broadband
  • 750-890 MHz Public Safety Range
  • Low Distortion, 45W RF Power in A Class
  • 50 Ohms RF Input/Output
  • 26 dB Maximum Gain
  • For Analog or Digital Broadcasting

AED6,499.00

Add to Wishlist

RF-Links AMP-750/45 Overview

Add a powerful but compact wideband linear amplifier to your small TV station or studio with this High-Gain UHF Linear Amplifier Class A Public Safety Band from RF-Links. The compact linear amplifier provides 50-ohm RF input, 45W RF Class A output power, and features male SMA I/O connectors. It supports UHF transmissions in the 750 to 860 MHz wideband frequency range with low distortion and doesn’t require any tuning or adjustment. It provides a maximum signal gain of 26 dB. This unit is ideal for emergency UHF for analog or digital TV broadcasts.

Note:

This unit must be installed on a separately available heat sink.
SKU: AMP-750/45 Category: Tag:
General
Impedance
50 Ohms Input/Output
RF Power
45 W Class A
Input Power
5 to 15 mW
Frequency Range
750 to 890 MHz
Gain
26 dB
Inputs / Outputs
Video I/O
1x SMA Input
1x SMA Output
Power
Power Source
Proprietary Interface
DC Input Power
12 to 14 VDC
Operating Current
6 A
Physical
Dimensions
3.25 x 2.5 x 0.8″ / 82.55 x 63.5 x 20.3 mm
Weight
Not Specified by Manufacturer
