RF-Links Military-Grade 20W High-Power Amplifier (20 MHz-6 GHz)

Add to Wishlist
Key Features
  • High-Power Linear RF Amplifier
  • For Military and Commercial Applications
  • 20W Power Output, 53.5 dB Gain
  • 20 MHz to 6 GHz Frequency Range
  • SMA Female Connectors

د.إ24,999.00

Add to Wishlist

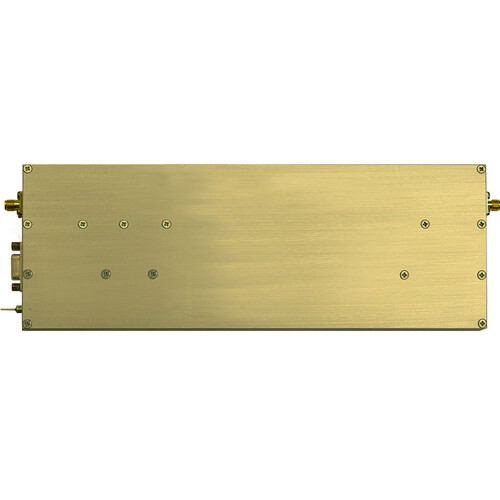

RF-Links ZHM 20-6000/20 Overview

Add a powerful but compact, high-power linear RF amplifier to your TV broadcast platform with this Military-Grade 20W High-Power Amplifier from RF-Links. The gallium nitride amplifier has been designed for military and commercial broadcast applications and it provides over 53.5 dB gain and up to 22W RF power output. It supports transmitters in the 20 MHz to 6 GHz broadband frequency range. This unit features SMA female input and output and it requires an external heat sink for cooling.

Key Features
  • Ideal for military and commercial broadcast applications
  • 20 MHz to 6 GHz frequency range
  • 20W output power
  • Compact, lightweight, rugged, and reliable
  • Requires external heat sink for cooling
SKU: ZHM 20-6000/20 Category: Tag:

RF-Links ZHM 20-6000/20 Specs

Inputs / Outputs
Video I/O
1x SMA Input
1x SMA Output
Power
Power Source
Proprietary Interface
DC Input Power
26 to 32 VDC at 2.7 A
Operating Temperature
-4 to 167°F / -20 to 75°C
Operating Humidity
95% (Non-Condensing)
Storage Temperature
-40 to 185°F / -40 to 85°C
Storage Humidity
95% (Non-Condensing)
Storage Altitude
30,000′ / 9144 m
