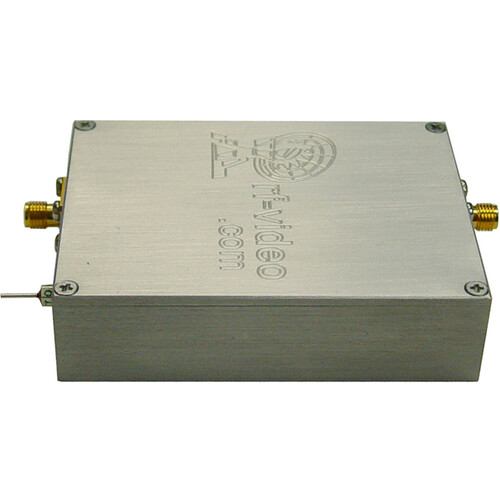

RF-Links Wideband 1W Microwave Amplifier (10 MHz–3 GHz)

Add to Wishlist
Key Features
  • Medium-Power Linear RF Amplifier
  • For Lab, Research, Military Applications
  • 1W Power Output, 17 dB Gain
  • 10 MHz–3 GHz Frequency Range
  • SMA Female Input/Output

AED6,499.00

Add to Wishlist

RF-Links ZHM-3G/1 Overview

Add a powerful but compact, high-power linear RF amplifier to your broadcast platform with this Wideband 1W Microwave Amplifier from RF-Links. The aluminum amplifier has been designed for research, military communications, and laboratory testing applications, 50 ohms input/output impedance, 17 dB gain, and up to 1W RF power output. It supports transmitters in the 10 MHz to 3 GHz broadband frequency range. This unit features SMA female input and output and it requires a separately available power supply.

Key Features
  • Ideal for research, military communications, and laboratory testing applications
  • 10 MHz to 3 GHz frequency range
  • 1W output power
  • Compact, lightweight, rugged, and reliable
  • 50 ohms input/output impedance
  • Lead-free and RoHS compliant
SKU: ZHM-3G/1 Category: Tag:

RF-Links ZHM-3G/1 Specs

General
Operating Frequency Range
10 MHz to 3 GHz
Output Power
1 W
Gain
17 dB
Impedance
50 Ohms (Input/Output)
Inputs / Outputs
Video I/O
1x SMA Input
1x SMA Output
Power
Power Source
Proprietary Interface
DC Input Power
28 VDC at 0.8 A
Power Consumption
10 W
Physical
Dimensions
3.25 x 2.5 x 0.8″ / 8.26 x 6.3 x 2 cm
Weight
Not Specified by Manufacturer
