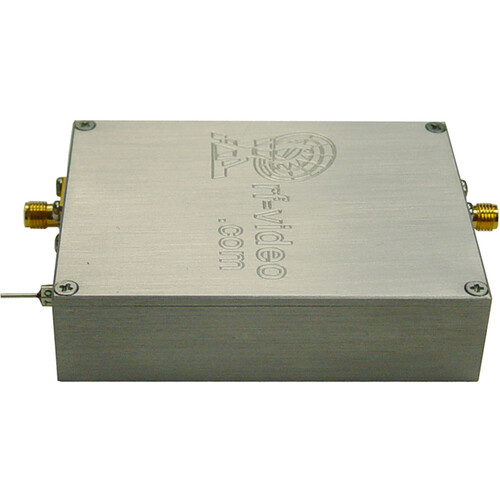

RF-Links Wideband 1W Microwave Amplifier (10 MHz-6 GHz)

Add to Wishlist
Key Features
  • Wideband Linear RF Microwave Amplifier
  • For Laboratory and Testing Applications
  • 1W Power Output, 15.9 dB Gain
  • 10 MHz to 6 GHz Frequency Range
  • 50 Ohms I/O Impedance, SMA Connectors

9,999.00 د.إ

Add to Wishlist

RF-Links ZHM-6G/1 Overview

Add a powerful but compact, high-power linear RF amplifier to your TV broadcast platform with this Wideband 1W Microwave Amplifier from RF-Links. The amplifier has been designed for laboratory, military, and testing broadcast applications and it provides over 15.9 dB gain, 50 ohms input/output impedance, and up to 1W RF power output. It supports transmitters in the 10 MHz to 6 GHz broadband frequency range. This unit features SMA female input and output.

Key Features
  • Ideal for laboratory, military, and commercial broadcast applications
  • 10 MHz to 6 GHz frequency range
  • 1W output power
  • Compact, lightweight, rugged, and reliable
  • 50 ohms input/output impedance
  • Requires external heat sink for cooling
SKU: ZHM-6G/1 Category: Tag:
General
Operating Frequency Range
10 MHz to 6 GHz
Gain
15.9 dB (Typical)
Output Power
1 W
Impedance
50 Ohms (Input/Output)
Inputs / Outputs
Video I/O
1x SMA Input
1x SMA Output
Power
Power Source
Proprietary Interface
DC Input Power
28 VDC at 0.8 A
Power Consumption
9 W
Physical
Dimensions
3.25 x 2.5 x 0.8″ / 8.26 x 6.3 x 2 cm
Weight
Not Specified by Manufacturer
