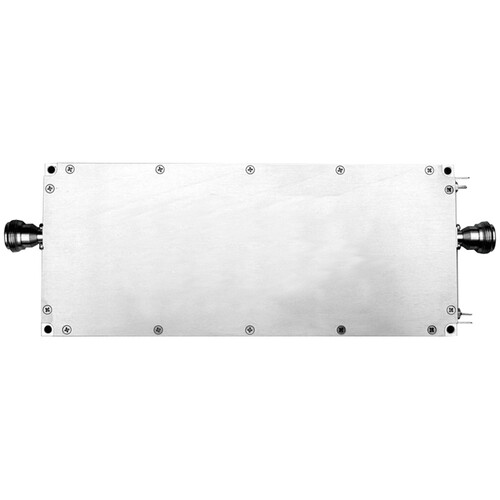

RF-Links Wideband 25W Microwave Amplifier (2300-2500 MHz)

Add to Wishlist
Key Features
  • High-Power Linear RF Amplifier
  • For Lab, Research, Military Applications
  • 25W Power Output, 55 dB Gain
  • 2300-2500 MHz Frequency Range
  • 50 Ohms RF Input/Output, SMA Female

7,499.00 د.إ

Add to Wishlist

RF-Links ZHM2325-20A Overview

Add a powerful but compact, high-power linear RF amplifier to your TV broadcast platform with this Wideband 25W Microwave Amplifier from RF-Links. The aluminum amplifier has been designed for research, military communications, and laboratory testing applications, and it provides 50-ohm RF input and output, over 55 dB gain, and up to 25W RF power output. It supports transmitters in the 2300 to 2500 MHz broadband frequency range. This unit features SMA female input and output and it requires a separately available 14V power supply.

Key Features
  • Ideal for research, military communications, laboratory testing applications
  • 2300 to 2500 MHz frequency range
  • 25W output power
  • Compact, lightweight, rugged, and reliable
  • 50-ohm input/output impedance
  • Requires 14V power supply
SKU: ZHM2325-20A Category: Tag:
General
Operating Frequency Range
2300 to 2500 MHz
Output Power
25 W
Gain
55 dB
Impedance
50 Ohms (Input/Output)
Inputs / Outputs
Video I/O
1x SMA Input
1x SMA Output
Power
Power Source
Proprietary Interface
DC Input Power
11 to 14 VDC at 8 A
Operating Temperature
12 to 87°F / -20 to 55°C
Physical
Material of Construction
Aluminum
Dimensions
7.56 x 3.15 x 0.87″ / 19.2 x 8 x 2.21 cm
Weight
2.2 lb / 1 kg
