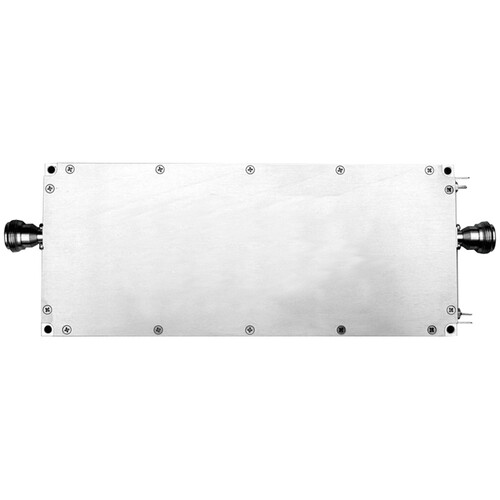

RF-Links Wideband UHF 100W Amplifier (30-550 MHz)

Add to Wishlist
Key Features
  • High-Power Linear RF Amplifier
  • For VHF/UHF Broadcasts
  • 100W Power Output, 49 dB Gain
  • 30-550 MHz Frequency Range
  • 50 Ohms RF Input/Output, SMA Female

22,599.00 د.إ

Add to Wishlist

RF-Links ZHM0360-100 Overview

Add a powerful but compact, high-power linear RF amplifier to your TV broadcast platform with this Wideband UHF 100W Amplifier from RF-Links. The amplifier has been designed for professional VHF/UHF broadcasts, military communications, and laboratory testing applications, and it provides 50-ohm RF input and output, 49 dB gain, and up to 100W RF power output. It supports transmitters in the 30 to 550 MHz broadband frequency range. This unit features SMA female input and output and it requires a separately available 28V power supply.

Key Features
  • Ideal for VHF/UHF broadcasts, military communications, laboratory testing applications
  • 30 to 550 MHz frequency range
  • 100W output power
  • Compact, lightweight, rugged, and reliable
  • 50-ohm input/output impedance
  • Requires 28V power supply
SKU: ZHM0360-100 Category: Tag:

RF-Links ZHM0360-100 Specs

General
Operating Frequency Range
30 to 550 MHz
Power Output
100 W
Impedance
50 Ohms (Input/Output)
Gain
49 dB
Inputs / Outputs
Video I/O
1x SMA Input
1x SMA Output
Power
Power Source
Proprietary Interface
DC Input Power
28 VDC at 8.5 A
Operating Temperature
12 to 87°F / -20 to 55°C
Physical
Material of Construction
Aluminum
Dimensions
7.56 x 3.15 x 0.87″ / 19.2 x 8 x 2.21 cm
Weight
20.5 oz / 580 g
