04 3550600 052 7036860

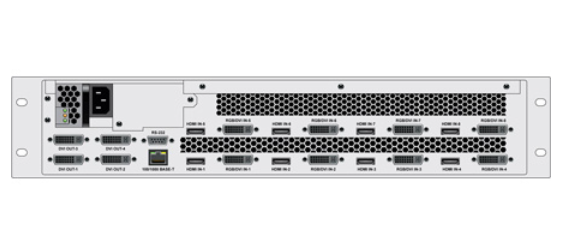

RGB MW 2900 MediaWall 2900 HDMI Display Processor with 8 DVI/Graphic Inputs 4 DVI Outputs

Add to Wishlist
  • 24 inputs; 2 or 4 outputs
  • Up to 8 windows for graphics and/or video
  • Overlap for edge-blenders and bezel compensation
  • Fully real-time – no dropped frames
  • Superb video quality

120,399.00 د.إ

Add to Wishlist

RGB Spectrum’s MW 2900 MediaWall® Display Processors provide best-in-class solutions for video wall displays. Using real-time embedded operating systems that are purpose-built to handle video and graphics, MediaWall 1900 and MediaWall 2900 display processors offer unparalleled flexibility, enhanced security, and real-time throughput with no dropped frames, to provide users with a superb visual experience.

  • Features:

    • 24 inputs; 2 or 4 outputs
    • Up to 8 windows for graphics and/or video
    • Overlap for edge-blenders and bezel compensation
    • Fully real-time – no dropped frames
    • Superb video quality
    • Embedded operating system
    • Robust 24/7 operation
    • Smooth scaling, panning and zooming
    • Save and recall up to 50 presets
SKU: MW 2900 Category: Tag:

Specifications:

  • Inputs – RGB Analog (Interlaced and progressive)
  • Number/type: 2x analog RGB/YPbPr/HD per module
  • Video level: 1.0 V p-p for G and Y composite, 0.7V p-p for RB and PbPr
  • Input impedance: 75 ohms
  • Sample clock rate: Up to 165 MHz
  • Horizontal scan rate: 15 kHz to 125 kHz
  • Frame rate: Up to 200 Hz
  • Resolution: 640×480 to 1920×1200, 2048×1152, 720p, 1080i, 1080p
  • Color depth: 24-bit
  • Sync type: RGsB, RGBS, RGBHV, YPbPr (tri-level or bi-level sync on Y/G)
  • Cable equalization: Automatic or manual, up to 164 ft (50 m) DVI
  • Connector type: 15-pin HD

    DVI Digital

  • Number/type: 8x DVI single link per frame
  • Resolution: 640×480 to 1920×1200 and 2048×1152, 720p, 1080p
  • Color depth: 24-bit
  • Cable equalization: Automatic or manual; up to 164 ft (50 m)
  • Connector type: DVI-I (digital and analog)
  • HDCP: Compliant

    HDMI

  • Number/type: 8x HDMI 1.3a
  • Resolution: 640×480 to 1920×1200 and 2048×1152, 720p, 1080i, 1080p
  • Color depth: 24-bit
  • Cable equalization: Automatic or manual; up to 164 ft (50 m)
  • Connector type:HDMI
  • HDCP: Compliant

    IP Input Options

  • H.264: 8 SD or 2 HD streams per optional external module
  • VNC: Netop remote control software

    Outputs

  • DVI single-link: 4 (MW2900), 2 (MW1900)
  • DVI dual-link: 2 (MW2900)
  • Resolution: Up to 1920×1200 and 2048×1152, 3840x2160p, 4096x2160p (MW2900)
  • Connector Type: DVI-I (digital only)
  • Horizontal scan rate: 31 kHz to 125 kHz
  • Frame rate: Up to 200 Hz
  • Clock rate: 25 to 165 MHz (single-link); 165 to 330 MHz (dual-link)
  • Sync type: SRGsB, RGBS, RGBHV, YPbPr (tri-level or bi-level sync on Y/G)
  • Pin Power: 500 mA @ 5 VDC

    General

  • Power: 100 – 240 VAC auto ranging 50/60 Hz, 125 W maximum
  • Control: Ethernet 10/100BaseT, Telnet, RS-232; Web interface, 3rd party controllers
  • Dimensions (W x H x D): 17 x 3.5 x 18 inches (43.2 x 8.9 x 18 cm) (7RU)
  • Weight: < 25 lbs / 11.4kg
