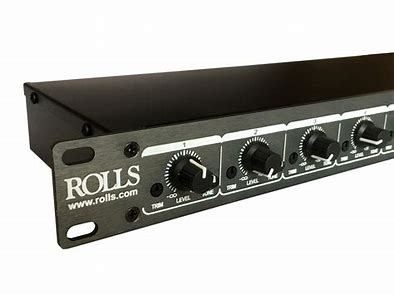

Rolls RM89 8-Channel Mic/Line Mixer

Add to Wishlist
  • 6 x Balanced 3-Pin XLR Mic/Line Inputs
  • 2 x Stereo Unbalanced RCA Line Inputs
  • Mono XLR Main Mic/Line Output
  • Stereo Unbalanced RCA Output
  • 15 VDC Phantom Power per Channel
  • Channel Level Controls
  • Level Output Control
  • Adjustable Treble/Bass on RCA Inputs
  • Occupies 1 RU of Rack Space

1,099.00 د.إ

Add to Wishlist

When you need a space-saving solution for mixing multiple mic/line signals in conference rooms, houses of worship, or small-scale event venues, consider the 1 RU rack-mountable Rolls RM89 eight-channel mixer. It features six balanced 3-pin XLR microphone inputs with individually selectable 15 VDC phantom power to accommodate dynamic or low-power condenser microphones. A single tone control allows you to boost/cut the high/low frequencies across all six inputs. Plus, the mixer’s two unbalanced stereo RCA source inputs offer easy connectivity for a wide range of consumer audio devices; these source inputs feature bass and treble controls. A front-panel 3.5mm jack parallels the Source 2 rear-panel input.

The summed output is fed through a master level control to a rear-panel mono XLR male connector and an unbalanced stereo RCA output. The mono XLR output can be set to mic or line level via toggle switch.

8-channel mixer with individual level controls for channels and master output level control
Six balanced microphone/line inputs via 3-pin XLR female sockets
Two stereo RCA source inputs with bass and treble control knobs; 3.5mm front-panel input to source 2
Single tone control knob for all microphone inputs
Mono XLR main output can be switched internally to output mic-level signal
Stereo RCA output
Rack-mountable enclosure occupies just 1 RU of rack space
SKU: RM89 1 Category: Tag:
Audio I/O
6x XLR 3-Pin Line/Mic Input
2x 2RCA Line Input
1x 1/8″ / 3.5 mm Line Input
1x XLR 3-Pin Line/Mic Output
1x 2RCA Line Output
Input Impedance
Mic: 600 Ohms XLR Balanced
RCA & 1/8″ / 3.5mm: 22 Kilohms Unbalanced RCA
Maximum Input Level
XLR Mic: -14 dBV, XLR Line: 5 dBV
RCA & 1/8″ / 3.5mm: 24 dBV
Phantom Power
15 VDC
Output Impedance
Balanced XLR Line Level: 100 Ohms
Balanced XLR Mic Level: 600 Ohms
Unbalanced RCA: 1 Kilohm
Gain
Max Gain
Mic: 60 dB
Source: 26 dB
Tone
Tone Controls: Up to -10 dB 500 Hz Bass, up to -10 dB 5 kHz Treble
Noise Floor
-80 dB
THD
<0.025%,
S/N Ratio
96 dB
Power
Power Source
AC Adapter with Power Brick (Included)
DC Input Power
15 VDC
Physical
Mounting
Side: 2x Rack Ears
Color
Black
Cable Length
Not Specified by Manufacturer
Dimensions
19 x 3.9 x 1.8″ / 48.3 x 10 x 4.5 cm
Weight
5 lb / 2.3 kg
Packaging Info
Package Weight
4.675 lb
Box Dimensions (LxWxH)
21.4 x 7.9 x 5.2″
