Model

Brand

Rosewill

Model

RNX-N250PCe

Details

Standards

IEEE 802.11b/g/n

Wireless Data Rates

300/300Mbps 2T2R

Security

64/128-bit WEP (802.1X), WPA(TKIP, AES, and 802.1X), WPA2(TKIP, AES, and 802.1X)

Interface

PCI Express 1.1

Frequency Band

2.4GHz – 2.484GHz

Channels

11 CH (US, Canada), 13 CH (EU), 14 CH (Japan)

LEDs

Link/Activity

Transmitted Power

802.11b: up to 18 +/- 1 dBm
802.11g: up to 14 +/- 1 dBm
802.11n: up to 13 +/- 1 dBm

Antenna

2 x external detachable 5 dBi Antenna

System Requirements

Supports Windows 2000/XP/2003/Vista/7/8 and Linux Kernel 2.6.x

Feature

Features

Chipset: Realtek RTL8192CE

Complies with IEEE 802.11b, 802.11g and 802.11n standard for 2.4GHz Wireless LAN

Compliant with PCI-E Standard

Supports Windows 2000/XP/2003/Vista/7/8 and Linux Kernel 2.6.x

Supports MIMO technology with 2x Transmit and 2x Receive.

Lower power consumption

Easy installation and configuration

Support WPS

Windows 8 Compatible

Dimensions & Weight

Dimensions

1.8″ x 2.9″ (45 x 74 mm, excluded Antenna)

Weight

0.08 lbs. (40g, excluded Antenna)

Environmental

Temperature

0°C – 40°C (32°F – 104°F)

Humidity

15% – 95%, Non-Condensing

Packaging

Package Contents

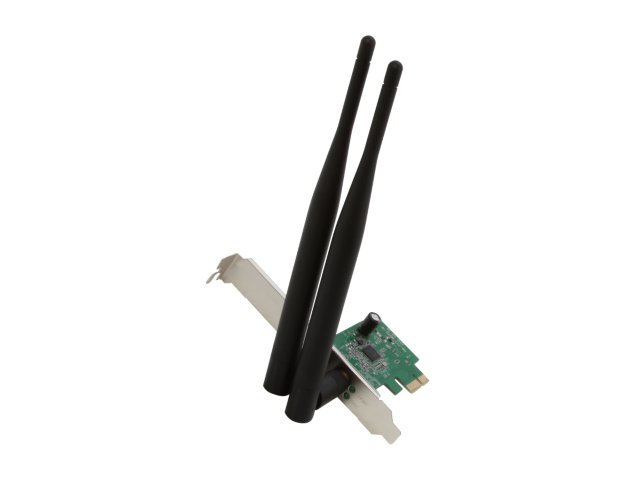

1 x RNX-N250PCe Wireless PCI Express adapter
2 x 5 dBi Antenna
1 x QIG
1 x Driver CD
1 x Low profile bracket
