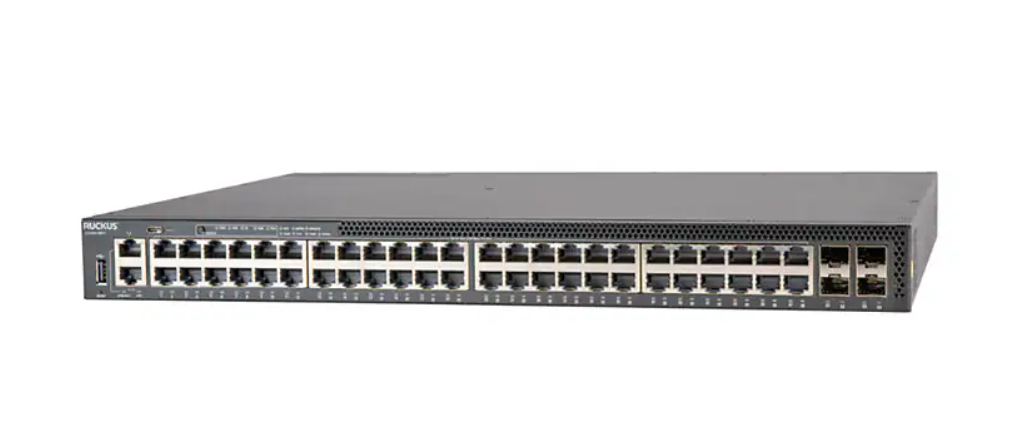

Ruckus CommScope 48×10/100/1000Mbps PoE Ethernet Switch

Add to Wishlist

Quick tech specs

  • Number of Ports: 48
  • RoHS Compliant
  • Power: 1440W

AED49,599.00

Add to Wishlist

Know your gear

The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability.

The RUCKUS ICX 8200 raises the bar with up to 8x 25GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and “pay as you grow” scalability of stackable solution.

SKU: ICX8200-48PF2-E2 Category: Tag:
Category Specification
Overview
Brand Ruckus
Product Line Ruckus ICX
Model 8200
Manufacturer Ruckus Wireless
Memory
Flash Memory Installed 8 GB
RAM Installed 4 GB
Network & Communication
Advanced Switching Layer 3
Features ARP support, BOOTP support, DDoS attack prevention, DHCP support, Flow control, MAC address filtering, Metro Ring Protocol (MRP) support, PIM snooping, Rapid Spanning Tree Protocol (RSTP) support, sFlow, Spanning Tree Protocol (STP) support, VLAN support, WRR queuing
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 32K entries
Manageable Yes
Max Units In A Stack 12
PoE Budget 1440 watt
Ports 48
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, DHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet
Routing Protocol GRE, OSPF, Static IPv4 routing, Static IPv6 routing, VRRP
Stackable Stackable
Subcategory Network hubs and switches
Connectivity
Interface Provided 1 x RJ-45 out-of-band network management, 1 x serial (console) RJ-45 management, 1 x USB storage, 1 x USB-C console management, 4 x 25 GbE SFP28 uplink/stacking, 48 x 10/100/1000 Base-T (PoE+) RJ-45
Port Quantity 48
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 25 GbE SFP28 (stacking / uplink)
Power
Frequency 50 – 60 hertz
Hot-Plug Hot-plug
Power Provided 920 watt
Power Supplies Installed 2
Power Supplies Supported 2
Redundant Power Supply Yes
Redundant Power Supply Supported 1+1
Required Voltage AC 100-240 volt
Technical Information
Encryption AES
Humidity Range Storage 10 – 90% (non-condensing)
Max Operating Temperature 113 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 10 – 90% (non-condensing)
Product Information
Airflow Direction Front to back airflow
Authentication Method RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity Spanning Tree Protocol instances: 253, Virtual interfaces (VLANs): 4095
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding performance: 220 Mpps, Stacking bandwidth: 1.2 Tbps, Switching capacity: 296 Gbps
Ports (2nd) Quantity 4
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 14.09 lbs
Width 17.3 inch
Depth 14.6 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards CAN/CSA-C22.2 No. 62368-1, EN 300 386, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN55024, FCC Part 15 B Class A, ICES-003, KN32 Class A, KN35 Class A, TCVN 7189 Class A, TCVN 7317, UL 62368-1, VCCI Class A
