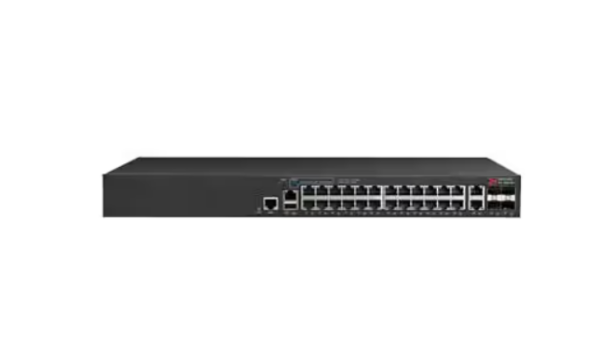

Ruckus ICX 7150-24P – switch – 24 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 24P
  • L3
  • 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 2 x Gigabit SFP + 2 x 10 Gigabit SFP+ (uplink)
  • rack-mountable
  • Switch
  • managed
  • front and side to back
  • PoE+ (370 W)

AED12,199.00

Add to Wishlist

Know your gear

Ruckus ICX 7150 Switch, 24×10/100/1000 Mbps PoE+ ports, 2×1 GbE RJ45 uplink-ports, 2×1 GbE SFP and 2×10 GbE SFP+ stacking/uplink-ports upgradable to 4×10 GbE SFP+ with license, 370 W PoE budget, basic Layer 3 (static routing and RIP).
SKU: ICX7150-24P-2X10G Category: Tag:
Category Details
Overview
Brand Ruckus
Product Line Ruckus ICX
Model 7150-24P
Manufacturer Ruckus Wireless
Memory
Flash Memory Installed 2 GB
RAM Installed 1 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 802.1x authentication, ACL support, CoS, DHCP relay/server/snooping, DiffServ support, DoS attack prevention, DAI, Flow control, IPv4/IPv6 support, NTP, OpenFlow, QoS, sFlow, SP, Tagged VLAN, TPM, VCT technology, WRR queuing
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 16384 entries
Manageable Yes
Max Units In A Stack 8
PoE Budget 370 watt
Ports 24
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, HTTP, HTTPS, SCP, SNMP 3, Telnet, TFTP
Routing Protocol RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing
Stackable Yes
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
QSFP Slots Gigabit SFP
Connectivity
Interface Provided 1 x console RJ-45, 1 x management RJ-45, 1 x USB-C management, 2 x 1000Base-T RJ-45 uplink, 2 x 10Gbit LAN SFP+ uplink/stacking, 2 x Gigabit LAN SFP+ upgradable to 10G, 24 x 1000Base-T RJ-45 (12 ports PoE+, 24 ports PoE)
Port Quantity 24
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 10/100/1000 (uplink)
Power
Frequency 50/60 hertz
Power Provided 525 watt
Power Supplies Installed 1
Power Supplies Supported 1
Technical Information
Encryption AES
Humidity Range Storage 0 – 95% (non-condensing)
Max Operating Temperature 122 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 23 degree Fahrenheit
Min Storage Temperature -13 degree Fahrenheit
Operating Humidity 5 – 95% (non-condensing)
Product Information
Airflow Direction Front and side to back
Authentication Method RADIUS, SSH2, TACACS, TACACS+
Capacity ARP entries: 2048, QoS hardware queues: 8, Spanning Tree Protocol instances: 254, VLANs: 4095
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding performance: 98 Mpps, Stacking bandwidth: 320 Gbps, Switching capacity: 132 Gbps
Ports (2nd) Quantity 2
Ports (3rd) Quantity 2
Ports (4th) Quantity 2
Ports (4th) Type 10 Gigabit SFP+ (uplink)
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Width 17.3 inch
Depth 11 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards AS/NZS 55022, CISPR 22 Class A, CSA C22.2 No. 60950-1-07, EN 60825-2, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-6-3, EN50081-1, EN55022, FCC Class A certified, ICES-003, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-36, IEC 60068-2-6, IEC 60950-1 Second Edition, RoHS 6/6, UL 60950-1 Second Edition, VCCI Class A, WEEE
ENERGY STAR Certified No
