Switches

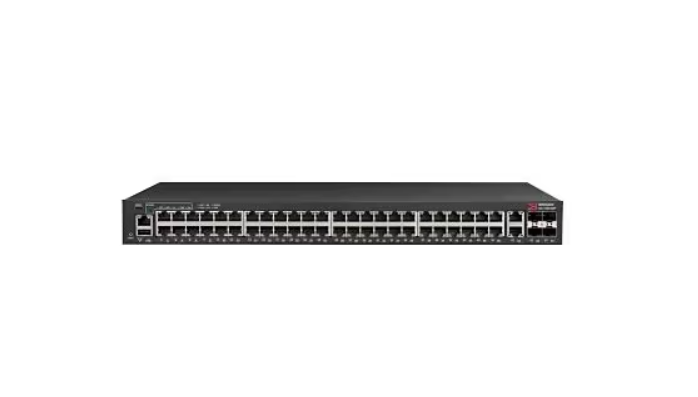

Ruckus ICX 7150-48P – switch – 48 ports – managed – rack-mountable – TAA Compliant
Quick tech specs
- 48P
- L3
- 48 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
- rack-mountable
- TAA Compliant
- Switch
- managed
- front and side to back
- PoE+ (370 W)
AED23,899.00
Know your gear
The Ruckus ICX 7150-C12P Switch displays high resiliency, better performance and increased PoE power. It features stacking ports up to 8 x 10 GbE. This switch is rack mountable and TAA compliant.
| Category | Details |
|---|
| Overview |
| Brand | Ruckus |
| Product Line | Ruckus ICX |
| Model | 7150-48P |
| Manufacturer | Ruckus Wireless |
| Memory |
| Flash Memory Installed | 2 GB |
| RAM Installed | 1 GB |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Features | 802.1x authentication, Access Control List (ACL) support, Class of Service (CoS), DHCP relay, DHCP server, DHCP snooping, DiffServ Code Point (DSCP) support, DiffServ support, DoS attack prevention, Dynamic ARP Inspection (DAI), Flow control, IPv4 support, IPv6 support, Network Timing Protocol (NTP), OpenFlow support, Quality of Service (QoS), sFlow, Strict Priority (SP), Tagged VLAN, Trusted Platform Module (TPM), Type of Service (ToS), Virtual Cable Test (VCT) technology, Weighted Round Robin (WRR) queuing |
| Form Factor (Hubs & Switches) | Rack-mountable |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 16384 entries |
| Manageable | Yes |
| Max Units In A Stack | 8 |
| PoE Budget | 370 watt |
| Ports | 48 |
| Power Over Ethernet (PoE) | PoE+ |
| Product Type | Switch |
| Remote Management | CLI, HTTP, HTTPS, SCP, SNMP 3, Telnet, TFTP |
| Routing Protocol | RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Switching Type | Gigabit Ethernet |
| Expansion Slots |
| QSFP Slots | 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Connectivity |
| Interface Provided | 1 x console RJ-45, 1 x management RJ-45, 1 x USB-C management, 2 x 1000Base-T RJ-45 uplink, 4 x Gigabit / 10Gbit LAN SFP+ uplink/stacking, 48 x 1000Base-T RJ-45 (12 ports PoE+ / 24 ports PoE) |
| Port Quantity | 48 |
| Port Type | 10/100/1000 (PoE+) |
| Ports Type (2nd) | 10/100/1000 (uplink) |
| Power |
| Frequency | 50/60 hertz |
| Power Provided | 525 watt |
| Power Supplies Installed | 1 |
| Power Supplies Supported | 1 |
| Technical Information |
| Encryption | AES |
| Humidity Range Storage | 0 – 95% (non-condensing) |
| Max Operating Temperature | 122 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Min Operating Temperature | 23 degree Fahrenheit |
| Min Storage Temperature | -13 degree Fahrenheit |
| Operating Humidity | 5 – 95% (non-condensing) |
| Product Information |
| Airflow Direction | Front and side to back |
| Authentication Method | RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+ |
| Capacity | ARP entries: 2048, QoS hardware queues: 8, Spanning Tree Protocol instances: 254, Virtual interfaces (VLANs): 4095 |
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Performance | Forwarding performance: 134 Mpps, Stacking bandwidth: 320 Gbps, Switching capacity: 180 Gbps |
| Ports (2nd) Quantity | 2 |
| Ports (3rd) Quantity | 4 |
| Dimensions & Weight |
| Height | 1.7 inch |
| Height (Rack Units) | 1 |
| Width | 17.3 inch |
| Depth | 14.6 inch |
| Physical Characteristics |
| Color Category | Black |
| Certifications & Listings |
| Compliant Standards | AS/NZS 55022, CISPR 22 Class A, CSA C22.2 No. 60950-1-07, EN 60825-2, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-6-3, EN50081-1, EN55022, FCC Class A certified, ICES-003, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-36, IEC 60068-2-6, IEC 60950-1 Second Edition, RoHS 6/6, UL 60950-1 Second Edition, VCCI Class A, WEEE |
| ENERGY STAR Certified | No |
| TAA Compliant | Yes |
There are no reviews yet.
