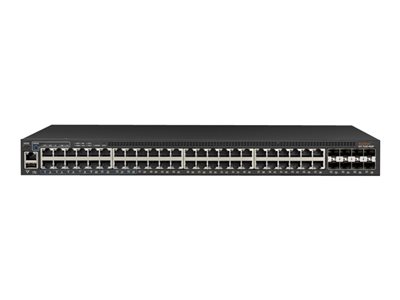

Ruckus ICX 7150-48ZP – switch – 48 ports – managed – rack-mountable – TAA Compliant

Add to Wishlist
Ruckus ICX 7150-48ZP – Switch – L3 – managed – 16 x 100/1000/2.5G (PoH) + 32 x 10/100/1000 (PoE+) + 8 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking) – rack-mountable – PoE+ (1480 W) – TAA Compliant

AED34,899.00

Add to Wishlist

Ruckus ICX 7150 Z-Series switch, 16Ɨ100/1000 Mbps/2.5 Gbps PoH ports, 32×10/100/1000 PoE+ ports, 8Ɨ10 GbE SFP+ stacking/uplink-ports (max 4 stacking), 2×920 W AC power supply, 2 fans, 1480 W PoE budget, L3 features (OSPF, VRRP, PIM, PBR) TAA compliant.

SKU: ICX7150-48ZP-E8X10GR2-A Category: Tag:
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 16 x 100/1000/2.5G (PoH) + 32 x 10/100/1000 (PoE+) + 8 x 1 Gigabit / 10 Gigabit SFP+ (uplink / stacking)
Power Over Ethernet (PoE) PoE+
PoE Budget 1480 W
Performance Switching capacity: 304 Gbps Ā¦ Forwarding performance: 226 Mbps Ā¦ Stacking bandwidth: 480 Gbps
Capacity Virtual interfaces (VLANs): 4095 Ā¦ Spanning Tree Protocol instances: 254 Ā¦ ARP entries: 4094 Ā¦ QoS hardware queues per port: 8 Ā¦ PVLANs supported: 32
MAC Address Table Size 16384 entries
Jumbo Frame Support 9216 bytes
Max Units In A Stack 12
Routing Protocol RIP-1, RIP-2, VRRP, PIM-SM, PIM-DM, PIM-SSM, VRRPE, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), VRRPv3
Remote Management Protocol SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, NTP
Encryption Algorithm AES
Authentication Method RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), RADSEC
Features DHCP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, DiffServ support, MAC address filtering, Metro Ring Protocol (MRP) support, PIM-SM snooping, Remote Fault Notification (RFN), Virtual Switch Redundancy Protocol (VSRP) support, Virtual Cable Test (VCT) technology, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, MLD snooping, Dynamic ARP Inspection (DAI), Trusted Platform Module (TPM), Uni-Directional Link Detection (UDLD), LACP support, Dynamic VLAN Support (GVRP), Neighbor Discovery Protocol (NDP), Strict Priority (SP), IGMP proxy, DiffServ Code Point (DSCP) support, In-Service Software Upgrade (ISSU), Bridge protocol data unit (BPDU), Secure Copy (SCP), MAC address authentication, Authentication, Authorization and Accounting (AAA), VLAN Double Tagging (Q-in-Q), VLAN mirroring, Voice VLAN, Private VLAN, Denial of Service (DoS) protection, Weighted Round Robin (WRR), MAC address mapping
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX, IEEE 802.1BR, IEEE 802.3bz
RAM 1 GB
Flash Memory 2 GB
Expansion / Connectivity
Interfaces 16 x 100/1000/2.5G RJ-45 PoH – 30 W Ā¦ 32 x 10/100/1000 Base-T RJ-45 PoE+ – 30 W Ā¦ 1 x management RJ-45 Ā¦ 1 x console (USB) Type C Ā¦ 1 x serial (console) RJ-45 Ā¦ 1 x USB Ā¦ 8 x 1/10Gbit LAN SFP+ uplink/stacking
Power
Power Device Internal power supply – hot-plug
Installed Qty 1
Max Supported Qty 1
Power Provided 920 Watt
Voltage Required AC 120/230 V (50 – 60 Hz)
Miscellaneous
MTBF 104,626 hours
Compliant Standards EN 61000-3-2, EN50081-1, ICES-003, EN 61000-3-3, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, UL 60950-1, IEC 60950-1, WEEE, RoHS, EN 61000-6-3, FCC Part 15 A, EN 60825-1, CAN/CSA C22.2 No. 60950-1-07, EN 60825-2, VCCI Class A, EN 60950-1:2006, IEC 68-2-6, AS/NZS 55022, IEC 68-2-36, EN 55022/CISPR 22 Class A, IEC 68-2-32, IEC 68-2-27
TAA Compliant Yes
Dimensions & Weight
Width 17.3 in
Depth 13.1 in
Height 1.7 in
Weight 14.57 lbs
