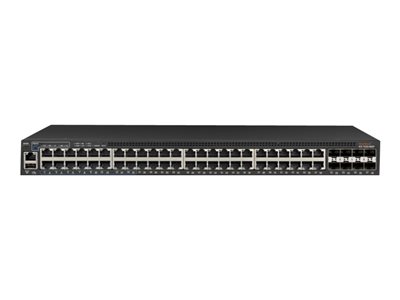

Ruckus ICX 7150-48ZP – Z-Series – switch – 48 ports – managed – rack-mountable

Add to Wishlist
Ruckus ICX 7150-48ZP – Z-Series – switch – managed – 16 x 100/1000/2.5G (PoH) + 32 x 10/100/1000 (PoE+) + 6 x Gigabit SFP (uplink) + 2 x 10 Gigabit SFP+ (uplink / stacking) – front to back airflow – rack-mountable – PoH / PoE+ (740 W)

AED25,199.00

Add to Wishlist

Ruckus ICX 7150 Z-Series Switch 16×100/1000 Mbps/2.5 Gbps PoH ports, 32×10/100/1000 PoE+ ports, 6×1 GbE SFP uplink ports and 2×10 GbE SFP+ stacking/uplink-ports upgradable to 8×10 GbE SFP+ w license, 1x 920W AC power supply 1 fan, 740W PoE budget, base L3.

SKU: ICX7150-48ZP-E2X10G Category: Tag:
Device Type Switch – 48 ports – managed – stackable
Enclosure Type Front to back airflow rack-mountable 1U
Subtype 2.5 Gigabit Ethernet
Ports 16 x 100/1000/2.5G (PoH) + 32 x 10/100/1000 (PoE+) + 6 x Gigabit SFP (uplink) + 2 x 10 Gigabit SFP+ (uplink / stacking)
Power Over Ethernet (PoE) PoH / PoE+
PoE Budget 740 W
Performance Switching capacity (full duplex): 304 Gbps <br> Forwarding performance (full duplex): 226 Mbps <br> Aggregate stacking bandwidth: 480 Gbps
Capacity Switches in a stack: 12 <br> MAC addresses: 16384 <br> VLANs supported: 4095 <br> PVLANs supported: 32 <br> STP instances: 254 <br> ARP entries: 4094 <br> IPv6 routes: 1000 <br> IPv4 routes: 1000 <br> Next hop address: 4094 <br> Trunk groups: 128 <br> Ports per trunk group: 16 <br> Jumbo frame size: 9216 <br> QoS priority queues per port: 8 <br> Layer 2 multicast groups: 3072 <br> Layer 3 multicast groups: 2048 <br> Port Extenders (PE) per fabric: 36 <br> Port Extender (PE) cascade depth (units): up to 6
Jumbo Frame Support Yes
Routing Protocol RIP, RIP-1, RIP-2, IGMPv2, IGMP, static IP routing, IGMPv3, ECMP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, NTP
Encryption Algorithm AES
Authentication Method Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features [Refer to the list provided]
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.1AX, IEEE 802.1BR, IEEE 802.3bz
RAM 1 GB
Flash Memory 2 GB
Status Indicators Power, status
Expansion / Connectivity Interfaces: 16 x 100/1000/2.5G RJ-45 PoH – 15.4 W <br> 32 x 10/100/1000 Base-T RJ-45 PoE+ <br> 6 x Gigabit LAN SFP <br> 2 x 10Gbit LAN SFP+ <br> 1 x management (LAN) RJ-45 <br> 1 x console (USB) Type C management <br> 1 x serial (console) RJ-45 management <br> 1 x USB Type A
Power Internal power supply – hot-plug
Installed Qty 1
Max Supported Qty 2
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 920 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous Included Accessories: Rubber feet <br> Cables Included: 1 x console cable <br> Rack Mounting Kit: Included <br> MTBF: 104,626 hours
Compliant Standards Plug and Play, EN 61000-3-2, EN50081-1, ICES-003, EN 61000-3-3, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1 Second Edition, WEEE, RoHS, EN 61000-6-3, FCC Part 15 A, CAN/CSA C22.2 No. 60950-1-07, EN 60825-2, IEC 60950-1 Second Edition, VCCI Class A, EN 60950-1:2006, IEC 68-2-6, AS/NZS 55022, IEC 68-2-36, EN 55022/CISPR 22 Class A, IEC 68-2-32
Localization United States
Dimensions & Weight Width: 17.3 in <br> Depth: 13.1 in <br> Height: 1.7 in <br> Weight: 14.57 lbs
