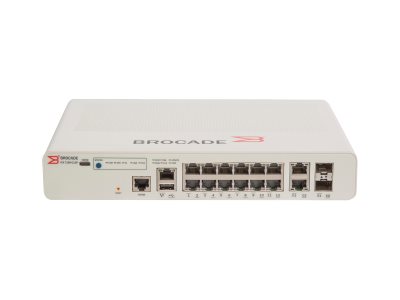

Ruckus ICX 7150-C12P – switch – 12 ports – managed

Add to Wishlist
Ruckus ICX 7150-C12P – Switch – L3 – managed – 12 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) – desktop – PoE+ (124 W) – with 3 years Brocade Essential Direct Remote Support

AED7,299.00

Add to Wishlist

Ruckus ICX 7150 Compact Switch, 12×10/100/1000 Mbps PoE+ ports, 2×1 GbE RJ45 uplink-ports, 2×10 GbE SFP+

stacking/uplink-ports, 124 W PoE budget, Layer 3 features (OSPF, VRRP, PIM, PBR), three-year remote support.

SKU: ICX7150-C12P-2X10GR-RMT3 Category: Tag:
Device Type Switch – 12 ports – L3 – managed – stackable
Bundled Services 3 years Brocade Essential Direct Remote Support
Enclosure Type Desktop 1U
Subtype Gigabit Ethernet
Ports 12 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 124 W
Performance Switching capacity: 68 Gbps ¦ Forwarding performance: 51 Mpps ¦ Stacking bandwidth: 160 Gbps
Capacity Virtual interfaces (VLANs): 4095 ¦ Spanning Tree Protocol instances: 254 ¦ ARP entries: 2048 ¦ QoS hardware queues: 8
MAC Address Table Size 16384 entries
Jumbo Frame Support 9216 bytes
Max Units In A Stack 8
Routing Protocol OSPF, RIP-1, RIP-2, VRRP, OSPFv2, PIM-SM, OSPFv3, PIM-SSM, VRRPE, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng, VRRPv3
Remote Management Protocol Telnet, SNMP 3, HTTP, HTTPS, TFTP, CLI, SCP
Encryption Algorithm AES
Authentication Method RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features Flow control, DoS attack prevention, DiffServ support, Weighted Round Robin (WRR) queuing, IPv6 support, sFlow, Virtual Cable Test (VCT) technology, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Trusted Platform Module (TPM), IPv4 support, fanless, DHCP relay, Class of Service (CoS), Strict Priority (SP), tagged VLAN, 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, OpenFlow support, Network Timing Protocol (NTP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1BR
RAM 1 GB
Flash Memory 2 GB
Expansion / Connectivity
Interfaces 12 x 1000Base-T RJ-45 4 ports (PoE+) / 8 ports (PoE) ¦ 2 x 1000Base-T RJ-45 uplink ¦ 1 x management RJ-45 ¦ 1 x console RJ-45 ¦ 1 x USB-C management ¦ 2 x Gigabit / 10Gbit LAN SFP+ uplink/stacking
Power
Power Device Internal power supply
Installed Qty 1
Max Supported Qty 1
Power Provided 150 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN50081-1, EN55022, ICES-003, EN 61000-3-3, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, RoHS, EN 61000-6-3, EN 60825-2, IEC 60950-1 Second Edition, VCCI Class A, EN 60950-1:2006, AS/NZS 55022, IEC 60068-2-36
Dimensions & Weight
Width 10.6 in
Depth 8.4 in
Height 1.7 in
