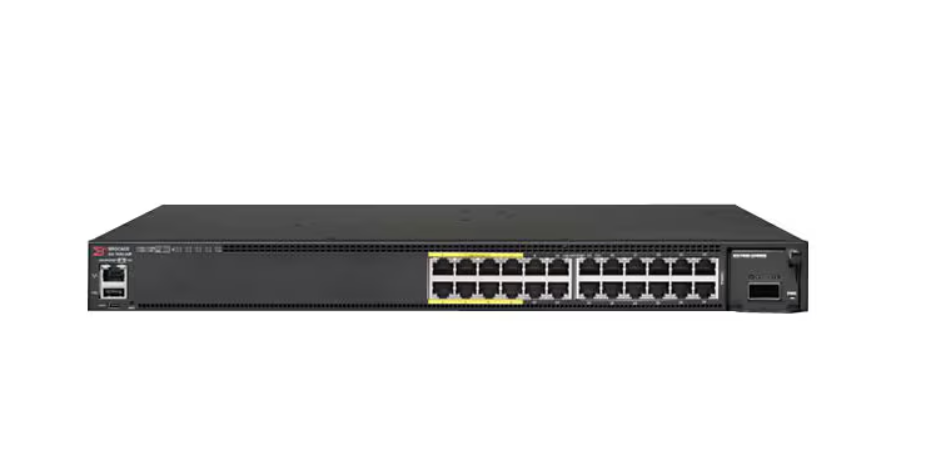

Ruckus ICX 7450-24P – switch – 24 ports – managed – rack-mountable


Quick tech specs

  • 24P
  • L3
  • 24 x 10/100/1000 (PoE+)
  • PoE+
  • Switch
  • managed
  • rack-mountable

AED21,899.00

Know your gear

The Ruckus ICX 7450 delivers unprecedented scale-out density with enterprise-class availability. With SDN support, a service module for IPsec VPN, and 40 GbE ports for uplinks all in a stackable design, these switches enable services to be added anywhere in the network. The ICX 7450 is an ideal network solution for campus networks requiring 1 GbE access or small aggregation deployments with upgradeable uplink modules. The switch also makes a suitable data center Top-of-Rack (ToR) solution, providing a ToR access-layer that can be upgraded to run on 10GbE/40GbE in the future with minimum costs and changes to cabling. The modular design of the switch enables deployment of additional services such as high-performance IPsec encryption to meet increasing compliance and data security requirements.
SKU: ICX7450-24P Category: Tag:
Category Specification
Overview
Brand Ruckus
Product Line Ruckus ICX
Model 7450-24P
Manufacturer Ruckus Wireless
Memory
Flash Memory Installed 2 GB
RAM Installed 2 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1BR, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 4MB packet buffer, AAA, Auto MDI/MDI-X, BOOTP support, BPDU Guard, CSMA/CD, CoS, DHCP relay/server/snooping, DiffServ, DOS prevention, DSCP-based QoS, EEE, Flow control, GVRP, Hybrid OpenFlow 1.3, IGMP snooping, ISSU, LACP, LLDP, MAC address filtering, MACsec, Metro Ring Protocol, MSTP, OpenFlow support, PVST+, QoS, RSTP, VLAN support, sFlow, STP support, SPQ, Telnet, Trunking, UDLD, Voice VLAN
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 32,768 entries
Manageable Yes
Max Units In A Stack 12
Ports 24
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, DHCP, HTTP, HTTPS, NTP, SCP, SNMP 1/2c/3, SSH-2, Telnet, TFTP
Routing Protocol ECMP, IGMP, MLD, RIP, Static IPv4/IPv6 routing
Stackable Stackable
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
Expansion Slots 3 (total) / 3 (free) x expansion slot
Connectivity
Interface Provided 1 x console management, 1 x Gigabit LAN RJ-45 management, 1 x USB Type A, 24 x 1000Base-T RJ-45 PoE+ (30 W)
Port Quantity 24
Port Type 10/100/1000 (PoE+)
Power
Hot-Plug Hot-plug
Power Consumption Operational 75 watt
Power Supplies Supported 2
Redundant Power Supply Optional
Redundant Power Supply Supported 1+1 (with optional power supply)
Technical Information
Encryption 256-bit SHA, 384-bit SHA, AES, ECDSA, ESP, IKEv2
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 122°F
Max Storage Temperature 158°F
Min Operating Temperature 23°F
Min Storage Temperature -13°F
MTBF 466,576 Hours
Operating Humidity 10 – 90% (non-condensing)
Supported Devices 3
Product Information
Authentication Method RADIUS, TACACS, TACACS+
Capacity IPv4 routes: 15,168, IPv6 routes: 5,120, Latency: 1.3 μs, Maximum ports per trunk: 16, PVLANs supported: 32, QoS priority queues per port: 8, Spanning Tree Protocol instances: 254, Trunk groups: 256, VLANs: 4096
Device Type Internal power supply (not installed)
Installed Devices/Modules 0
Packaged Quantity 1
Performance Forwarding capacity: 214 Mpps, Switching capacity: 288 Gbps
Rack Mounting Kit Included
Included Items
Cables 1 x console cable
Dimensions & Weight
Height 1.7 inch
Weight 15.21 lbs
Width 17.3 inch
Depth 15.5 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards AS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, CISPR 22 Class A, EN 60950-1:2006, EN 61000-3-2/3/4, FCC Part 15 A, ICES-003, IEC 60950-1, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
