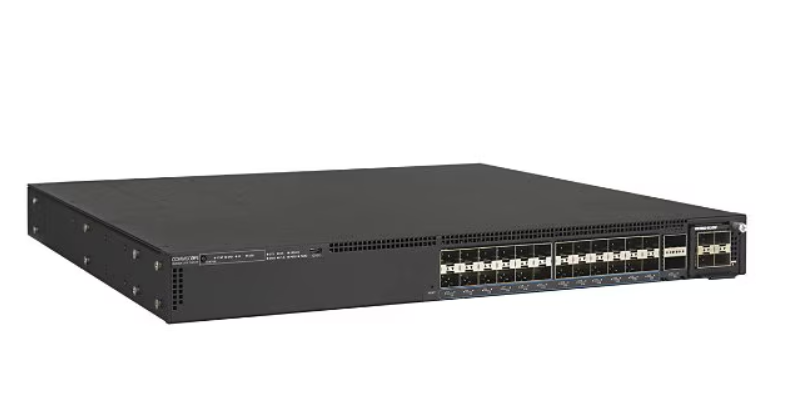

Ruckus ICX 7550-24F-E2 – switch – 24 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 24F-E2
  • L3
  • 24 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40/100 Gigabit QSFP+
  • Switch
  • managed
  • rack-mountable

AED74,999.00

Add to Wishlist

Know your gear

The CommScope RUCKUS ICX 7550 switch delivers the premium performance and scalability required for Wi-Fi 6 deployments with multigigabit connectivity and great PoE power per port with perpetual and fast-boot PoE support. It offers quality stacking density and combines chassis-level performance with pay as you grow scalability of a stackable solution. The stackable switch enables enterprises to dramatically increase their network capacity while using their existing optical wire infrastructure.
SKU: ICX7550-24F-E2 Category: Tag:
Category Specification
Overview
Brand Ruckus
Product Line Ruckus ICX
Model 7550-24F-E2
Manufacturer Ruckus Wireless
Memory
Flash Memory Installed 4 GB
RAM Installed 4 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 802.1x authentication, ACL support, AAA, Auto-uplink (auto MDI/MDI-X), BOOTP, BPDU Guard, Change of Authorization (CoA), Class of Service (CoS), DoS, DHCP server, DHCP snooping, DOM support, Dynamic VLAN Support (GVRP), ERSPAN, Flexible authentication, Flow control, Full duplex, IGMP snooping, Link Fault Signaling (LFS), MACsec support, Metro Ring Protocol (MRP), Multiple Spanning Tree Protocol (MSTP), Multiple VLAN Registration Protocol (MVRP), NDP, NTP, OpenFlow, PVRST, PVST, PVST+, PIM-SM snooping, Port Loop Detection, Port mirroring, Precision Time Protocol (PTP), Private VLAN, Protected ports, Q-in-Q tunneling, QoS, RFN, RSPAN, Root Guard, SCP, sFlow, SmartZone, Strict Priority (SP), Syslog, Telnet client/server, UDLD, Virtual Cable Test (VCT), VXLAN, Virtual Switch Redundancy Protocol (VSRP), Voice VLAN, Web authentication, WRR
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 12,288 bytes
Manageable Yes
Max Units In A Stack 12
Ports 24
Product Type Switch
Remote Management CLI, HTTP, HTTPS, SNMP 1/2c/3, SSH-2, TFTP
Routing Protocol ECMP, RIP-1, RIP-2, Static IPv4/IPv6 routing
Stackable Stackable
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
Expansion Slots 1 (total) / 1 (free) x expansion slot
Connectivity
Interface Provided 1 x 1000Base-T RJ-45 management, 1 x console (USB Type C), 1 x console RJ-45, 2 x 100Gbit/40Gbit LAN QSFP+ uplink/stacking, 24 x 1/10GBase-X SFP+
Port Quantity 24
Port Type 1 Gigabit / 10 Gigabit SFP+
Ports Type (2nd) 40/100 Gigabit QSFP+
Power
Frequency 50/60 hertz
Hot-Plug Hot-plug
Power Consumption (Operational) 142.7 watts
Power Provided 400 watts
Power Supplies Installed 2
Power Supplies Supported 2
Redundant Power Supply Yes
Redundant Power Supply Supported 1+1
Technical Information
Encryption AES
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 113 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Min Storage Temperature -40 °F
MTBF 853,073 hours
Operating Humidity 10 – 90% (non-condensing)
Product Information
Authentication Method RADIUS, SSH2, TACACS, TACACS+
Capacity Maximum ports per trunk: 32, Multicast groups: 8192, Priority QoS queues: 48, PVLANs supported: 256, Spanning Tree Protocol instances: 512, Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 128
Device Type Internal power supply
Packaged Quantity 1
Performance Aggregate stacking bandwidth: 2.4 Tbps, Forwarding capacity: 655 Mpps, Switching capacity: 880 Gbps
Ports (2nd) Quantity 2
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 13.32 lbs
Width 17.3 inch
Depth 16 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards AS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, EN 55022/CISPR 22 Class A, EN 60825-1, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55024, FCC Part 15 A, ICES-003, IEC 60950-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
