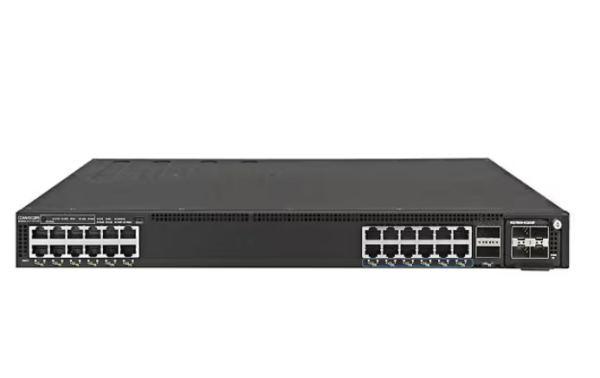

Ruckus ICX 7550-24ZP – switch – 24 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 24ZP
  • L3
  • 12 x 10/100/1000/2.5G (PoE++) + 12 x 100/1000/2.5/5/10G (PoE++) + 2 x 40/100 Gigabit QSFP+
  • PoE++ (2000 W)
  • Switch
  • managed
  • rack-mountable

AED57,699.00

Add to Wishlist

Know your gear

The CommScope Ruckus ICX 7550 switch delivers the premium performance and scalability required for Wi-Fi 6 deployments and beyond. It offers incredible stacking density and combines chassis-level performance with “pay as you grow” scalability of a stackable solution.
SKU: ICX7550-24ZP Category: Tag:
Category Specifications
Overview
Brand Ruckus
Product Line Ruckus ICX
Model 7550-24ZP
Manufacturer Ruckus Wireless
Memory
Flash Memory Installed 4 GB
RAM Installed 4 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 802.1x authentication, Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, Change of Authorization (CoA), Class of Service (CoS), Denial of Service (DoS), DHCP server, DHCP snooping, Digital Optical Monitoring (DOM) support, Dynamic VLAN Support (GVRP), Encapsulated Remote SPAN (ERSPAN), Flexible authentication, Flow control, Full duplex capability, IGMP snooping, Inter-Packet Gap (IPG) adjustment, Link Fault Signaling (LFS), MAC address authentication, MAC address filtering, MAC based VLAN, MAC Learning Disable, MACsec support, Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Network Timing Protocol (NTP), OpenFlow support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM-SM snooping, Port Loop Detection, Port mirroring, Precision Time Protocol (PTP), Private VLAN, Protected ports, Q-in-Q tunneling, Quality of Service (QoS), Remote Fault Notification (RFN), Remote Switch Port Analyzer (RSPAN), Root Guard, Secure Copy (SCP), sFlow, SmartZone, Strict Priority (SP), Syslog support, Telnet client, Telnet server, Uni-Directional Link Detection (UDLD), Virtual Cable Test (VCT) technology, Virtual Extensible LAN (VXLAN), Virtual Switch Redundancy Protocol (VSRP) support, Voice VLAN, Web authentication, Weighted Round Robin (WRR)
Form Factor Rack-mountable
Jumbo Frame Support 12288 bytes
Manageable Yes
PoE Budget 2000 watt
Ports 24
Power Over Ethernet (PoE) PoE++
Product Type Switch
Remote Management CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH-2, TFTP
Routing Protocol ECMP, RIP-1, RIP-2, Static IPv4 routing, Static IPv6 routing
Subcategory Network hubs and switches
Switching Type 10 Gigabit Ethernet
Connectivity
Interface Provided 1 x 1000Base-T RJ-45 management, 1 x console (USB) Type C, 1 x console RJ-45, 12 x 10/100/1000/2.5G RJ-45 PoE++ – 90 W, 12 x 100/1000/2.5G/5G/10G RJ-45 PoE++ – 90 W, 2 x 100Gbit/40Gbit LAN QSFP+ uplink/stacking
Port Quantity 12
Port Type 10/100/1000/2.5G (PoE++)
Ports Type (2nd) 100/1000/2.5/5/10G (PoE++)
Power
Power Supplies Supported 2
Redundant Power Supply Yes
Technical Information
Encryption AES
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 113 degrees Fahrenheit
Max Storage Temperature 158 degrees Fahrenheit
Min Operating Temperature 32 degrees Fahrenheit
Min Storage Temperature -40 degrees Fahrenheit
MTBF 287.828 Hours
Operating Humidity 10 – 90% (non-condensing)
Product Information
Authentication Method RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity Maximum ports per trunk: 32, Multicast groups: 8192, Priority QoS queues: 48, PVLANs supported: 256, Spanning Tree Protocol instances: 512, Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 128
Device Type Internal power supply (not installed)
Packaged Quantity 1
Performance Aggregate stacking bandwidth: 2.4 Tbps, Forwarding capacity: 521 Mpps, Switching capacity: 700 Gbps
Ports (2nd) Quantity 12
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 15.39 lbs
Width 17.3 inch
Depth 16 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards AS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, EN 55022/CISPR 22 Class A, EN 60825-1, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55024, FCC Part 15 A, ICES-003, IEC 60950-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE
