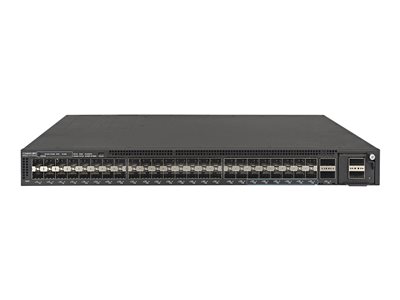

Ruckus ICX 7550-48F-E2 – switch – 48 ports – managed – rack-mountable

Add to Wishlist
Ruckus ICX 7550-48F-E2 – Switch – L3 – managed – 36 x Gigabit SFP + 12 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40/100 Gigabit QSFP+ – front to back airflow – rack-mountable

AED54,199.00

Add to Wishlist

The CommScope Ruckus ICX 7550 switch delivers the premium performance and scalability required for Wi-Fi 6 deployments and beyond. It offers excellent stacking density and combines chassis-level performance with “pay as you grow” scalability of a stackable solution. The switch offers 100 GbE uplinks, enabling enterprises to dramatically increase network capacity while using existing optical wire infrastructure.

SKU: ICX7550-48F-E2 Category: Tag:
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Front to back airflow rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 36 x Gigabit SFP + 12 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 40/100 Gigabit QSFP+
Performance Switching capacity: 912 Gbps ¦ Forwarding capacity: 678 Mpps ¦ Aggregate stacking bandwidth: 2.4 Tbps
Capacity Virtual interfaces (VLANs): 4095 ¦ PVLANs supported: 256 ¦ Maximum ports per trunk: 32 ¦ Trunk groups: 256 ¦ Spanning Tree Protocol instances: 512 ¦ Priority QoS queues: 48 ¦ Multicast groups: 8192 ¦ VRF instances: 128
Jumbo Frame Support 12288 bytes
Max Units In A Stack 12
Routing Protocol RIP-1, RIP-2, static IPv4 routing, static IPv6 routing, ECMP
Remote Management Protocol SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI
Encryption Algorithm AES
Authentication Method RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features Flow control, full duplex capability, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, MAC address filtering, Link Fault Signaling (LFS), Metro Ring Protocol (MRP) support, sFlow, Per-VLAN Spanning Tree (PVST), PIM-SM snooping, Remote Fault Notification (RFN), Virtual Switch Redundancy Protocol (VSRP) support, Virtual Cable Test (VCT) technology, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, DHCP server, MLD snooping, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Strict Priority (SP), Denial of Service (DoS), 802.1x authentication, Precision Time Protocol (PTP), MACsec support, 3 fans, OpenFlow support, Secure Copy (SCP), Virtual Extensible LAN (VXLAN), MAC address authentication, Network Timing Protocol (NTP), Authentication, Authorization and Accounting (AAA), Root Guard, Voice VLAN, Private VLAN, protected ports, Encapsulated Remote SPAN (ERSPAN), Weighted Round Robin (WRR), MAC based VLAN, Telnet server, Telnet client, BPDU Guard, Q-in-Q tunneling, SmartZone, Inter-Packet Gap (IPG) adjustment, MAC Learning Disable, Port Loop Detection, Flexible authentication, Web authentication, Change of Authorization (CoA)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3bz
RAM 4 GB
Flash Memory 4 GB
Expansion / Connectivity 36 x 100 / 1000Base-X SFP ¦ 12 x 1/10GBase-X SFP+ ¦ 2 x 100Gbit/40Gbit LAN QSFP+ uplink/stacking ¦ 1 x console RJ-45 ¦ 1 x console (USB) Type C ¦ 1 x 1000Base-T RJ-45 management
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power Device Internal power supply – hot-plug
Installed Qty 2
Max Supported Qty 2
Power Redundancy Yes
Power Redundancy Scheme 1+1
Power Provided 400 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 166.8 Watt
Miscellaneous – MTBF 532,359 hours
Compliant Standards EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, WEEE, RoHS, EN 61000-6-3, FCC Part 15 A, EN 60825-1, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, EN 60950-1:2006, IEC 68-2-6, AS/NZS 55022, IEC 68-2-36, EN 55022/CISPR 22 Class A, IEC 68-2-32, IEC 68-2-27
Dimensions & Weight – Width 17.3 in
Dimensions & Weight – Depth 16 in
Dimensions & Weight – Height 1.7 in
Dimensions & Weight – Weight 14.15 lbs
