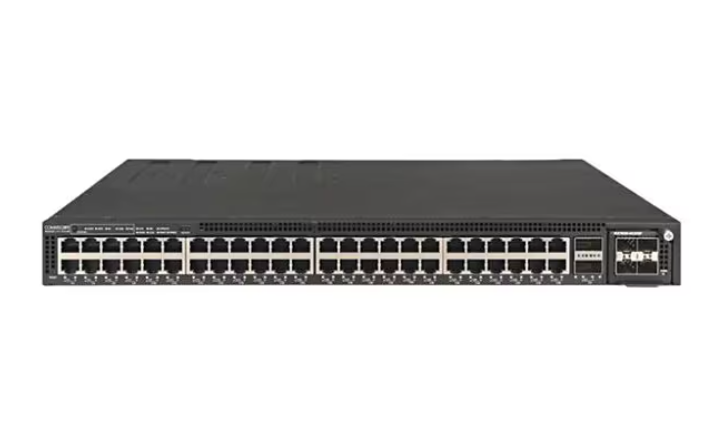

Ruckus ICX 7550-48ZP-E2-R3 – switch – 48 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • Number of Ports: 48
  • Includes 2x 1200W AC Power Supplies,3x Fans and Front to Back Airflow

AED88,299.00

Add to Wishlist

Know your gear

The Ruckus ICX 7550 Switch delivers the premium performance and scalability required for Wi-Fi deployments and beyond with up to 48 ports of multigigabit connectivity and full 90 watts of 802.3bt PoE power per port with perpetual and fast-boot PoE support. It enables enterprises to dramatically increase their network capacity while using their existing optical wire infrastructure.

SKU: ICX7550-48ZP-E2-R3 Category: Tag:
Category Specification
Overview
Brand Ruckus
Product Line Ruckus ICX
Model 7550-48ZP-E2-R3
Manufacturer Ruckus Wireless
Memory
Flash Memory Installed 4 GB
RAM Installed 4 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.2af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 3 fans, 802.1x authentication, Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, Change of Authorization (CoA), Class of Service (CoS), Denial of Service (DoS), DHCP server, DHCP snooping, Digital Optical Monitoring (DOM) support, Dynamic VLAN Support (GVRP), Encapsulated Remote SPAN (ERSPAN), Flexible authentication, Flow control, Full duplex capability, IGMP snooping, Inter-Packet Gap (IPG) adjustment, Link Fault Signaling (LFS), MAC address authentication, MAC address filtering, MAC based VLAN, MAC Learning Disable, MACsec support, Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Network Timing Protocol (NTP), OpenFlow support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM-SM snooping, Port Loop Detection, Port mirroring, Precision Time Protocol (PTP), Private VLAN, Protected ports, Q-in-Q tunneling, Quality of Service (QoS), Remote Fault Notification (RFN), Remote Switch Port Analyzer (RSPAN), Root Guard, Secure Copy (SCP), sFlow, SmartZone, Strict Priority (SP), Syslog support, Telnet client, Telnet server, Uni-Directional Link Detection (UDLD), Virtual Cable Test (VCT) technology, Virtual Extensible LAN (VXLAN), Virtual Switch Redundancy Protocol (VSRP) support, Voice VLAN, Web authentication, Weighted Round Robin (WRR)
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 12288 bytes
Manageable Yes
Max Units In A Stack 12
PoE Budget 2000 watt
Ports 48
Power Over Ethernet (PoE) PoE++
Product Type Switch
Remote Management CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH-2, TFTP
Routing Protocol BGP-4, BGP-4+, ECMP, GRE, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSDP, OSPFv2, OSPFv3, PIM-DM, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIPng, Static IPv4 routing, Static IPv6 routing, VRRPE, VRRPv3
Stackable Stackable
Subcategory Network hubs and switches
Switching Type 10 Gigabit Ethernet
Expansion Slots
QSFP Slots 40/100 Gigabit QSFP+ (uplink / stacking)
Connectivity
Interface Provided 1 x 1000Base-T RJ-45 management, 1 x console (USB) Type C, 1 x console RJ-45, 12 x 100/1000/2.5G/5G/10G RJ-45 PoE++ – 90 W, 2 x 100Gbit/40Gbit LAN QSFP+ uplink/stacking, 36 x 10/100/1000/2.5G RJ-45 PoE++ – 90 W
Port Quantity 36
Port Type 10/100/1000/2.5G (PoE++)
Ports Type (2nd) 100/1000/2.5/5/10G (PoE++)
Scanning
Bundled Services 3 years Remote Support
Power
Frequency 50/60 hertz
Hot-Plug Hot-plug
Power Consumption Operational 1183.7 watt
Power Provided 1200 watt
Power Supplies Installed 2
Power Supplies Supported 2
Redundant Power Supply Yes
Redundant Power Supply Supported 1+1
Technical Information
Encryption AES
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 113 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
MTBF 213,665 Hours
Operating Humidity 10 – 90% (non-condensing)
Product Information
Airflow Direction Front to back airflow
Authentication Method RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity Maximum ports per trunk: 32, Multicast groups: 8192, Priority QoS queues: 48, PVLANs supported: 256, Spanning Tree Protocol instances: 512, Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 128
Device Type Internal power supply
Packaged Quantity 1
Performance Aggregate stacking bandwidth: 2.4 Tbps, Forwarding capacity: 759 Mpps, Switching capacity: 1020 Gbps
Ports (2nd) Quantity 12
Ports (3rd) Quantity 2
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 16.23 lbs
Width 17.3 inch
Depth 16 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards AS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, EN 55022/CISPR 22 Class A, EN 60825-1, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55024, FCC Part 15 A, ICES-003, IEC 60950-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
