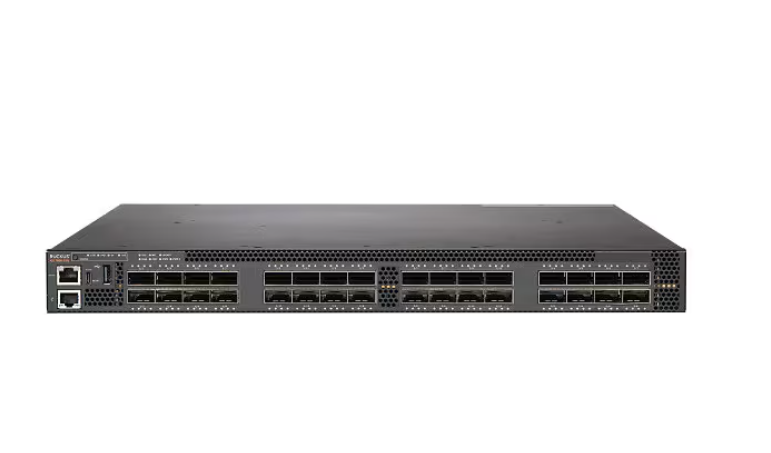

Ruckus ICX 7850-32Q – switch – 32 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 32Q
  • L3
  • 32 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28
  • rack-mountable
  • Switch
  • managed
  • front to back airflow

AED191,499.00

Add to Wishlist

Know your gear

The ICX 7850-32Q aggregation/core switch comes standard with 32 40/100 GbE ports and up to 8 of these ports can be used for stacking. The QSFP28 ports are capable of native 40 GbE or 100 GbE Ethernet, or may be broken out to 4×10 Gbps or 4×25 Gbps links to give up to 128 10/25GbE ports for server aggregation in a Data Center, or switch aggregation in the campus.
SKU: ICX7850-32Q-E2 Category: Tag:
Category Details
Overview
Brand Ruckus
Product Line Ruckus ICX
Model 7850-32Q
Manufacturer Ruckus Wireless
Memory
Flash Memory Installed 32 GB
RAM Installed 4 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3x, IEEE 802.3z
Features 6 fans, 802.1x authentication, Access Control List (ACL) support, BOOTP support, DHCP server, DHCP snooping, DHCP support, Digital Optical Monitoring (DOM) support, DoS attack prevention, Dynamic ARP Inspection (DAI), Encapsulated Remote SPAN (ERSPAN), Flow control, Full duplex capability, IGMP proxy, In-Service Software Upgrade (ISSU), IPv4 support, IPv6 support, Jumbo Frames support, Link Aggregation, Link Aggregation Control Protocol (LACP), LLDP support, MAC address authentication, MAC address filtering, Management Information Base (MIB), Metro Ring Protocol (MRP) support, MRP-II support, Multi-Chassis Trunking (MCT), Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), Network Access Control (NAC), Port mirroring, Protected ports, Quality of Service (QoS), Rapid Reconfiguration of Spanning Tree (RSTP), Secure Copy (SCP), sFlow, SmartZone, SNMP support, Strict Priority (SP), Syslog support, Tagged VLAN, Telnet client, Telnet server, Trivial File Transfer Protocol (TFTP) support, Trusted Platform Module (TPM), Type of Service (ToS), Virtual Switch Redundancy Protocol (VSRP) support, VLAN support, VLAN Tagging, Weighted Round Robin (WRR) queuing
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 32K entries
Manageable Yes
Ports 32
Product Type Switch
Remote Management CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH-2, TFTP
Routing Protocol ECMP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP-1, RIP-2, RIPng, Static IP routing, VRRP
Stackable Stackable
Subcategory Network hubs and switches
Switching Type 100 Gigabit Ethernet
Connectivity
Interface Provided 1 x 1000Base-T RJ-45 management, 1 x console (USB) Type C, 1 x console RJ-45 management, 32 x 100Gbit/40Gbit LAN QSFP28
Port Quantity 32
Port Type 100 Gigabit QSFP28 / 40 Gigabit QSFP28
Power
Frequency 50/60 hertz
Hot-Plug Hot-plug
Power Provided 650 watt
Power Supplies Installed 2
Power Supplies Supported 2
Redundant Power Supply Yes
Redundant Power Supply Supported 1+1
Technical Information
Encryption AES
Humidity Range Storage 10 – 90% (non-condensing)
Max Operating Temperature 113 degree Fahrenheit
Max Storage Temperature 104 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
MTBF 467,508 Hours
Operating Humidity 10 – 90% (non-condensing)
Product Information
Airflow Direction Front to back airflow
Authentication Method RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity Latency: 0.8 µs, Layer 2 multicast groups: 8192, Layer 3 multicast groups: 8192, Maximum ports per trunk: 16, Priority QoS queues: 10, PVLANs supported: 256, Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 64
Device Type Internal power supply
Packaged Quantity 1
Performance Aggregate stacking bandwidth: 9.6 Tbps, Forwarding capacity: 2 Bpps, Switching capacity: 6.4 Tbps
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 20.06 lbs
Width 17.3 inch
Depth 17.5 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards AS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, CISPR 22 Class A, EN 60825-1, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55022, EN55024, FCC Part 15 A, ICES-003, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, IEC60950-1, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
