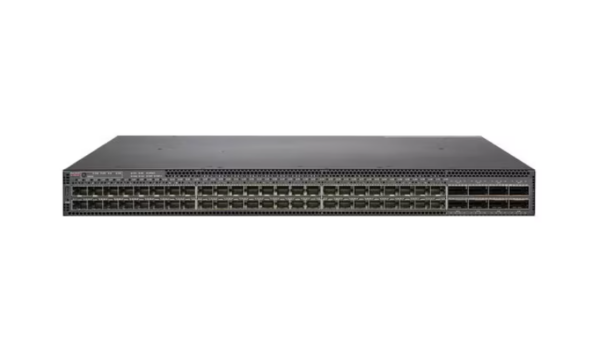

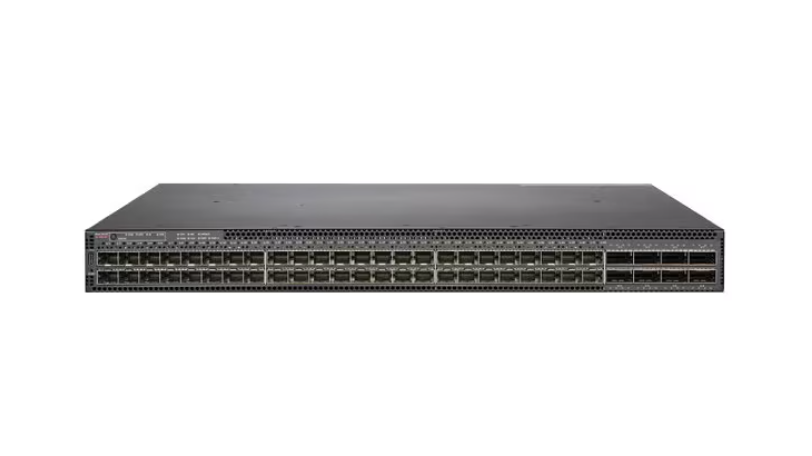

Ruckus ICX 7850-48F – switch – 48 ports – managed – rack-mountable


Quick tech specs

  • L3
  • 48 x 1/10/25 Gigabit SFP28 + 8 x 40 Gigabit / 100 Gigabit QSFP28
  • managed
  • rack-mountable

AED162,899.00

Know your gear

The Ruckus ICX 7850 Switch delivers non-blocking line-rate performance on all ports concurrently. It supports superior Ethernet speeds with 10/25 Gigabit Ethernet at the aggregation and 40/100 Gigabit Ethernet at the core to meet high volumes of traffic driving from the edge into the core. This switch also supports a rich array of routing protocols and delivers a range of high-availability hardware and software features.

SKU: ICX7850-48F-E2 Category: Tag:
Category Details
Overview
Brand Ruckus
Product Line Ruckus ICX
Model 7850-48F
Manufacturer Ruckus Wireless
Memory
Flash Memory Installed 32 GB
RAM Installed 4 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab, IEEE 802.1ae, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab
Features ACL, DHCP, DHCP snooping, MAC filtering, IPv4/IPv6, Jumbo Frames, Link Aggregation, QoS, sFlow, VLAN support
Form Factor Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 32K entries
Manageable Yes
Ports 48
Product Type Switch
Remote Management CLI, HTTP, HTTPS, SNMP 1/2c/3, SSH-2, TFTP
Routing Protocol ECMP, IGMP, RIP-1/2/ng, Static IP routing, VRRP
Stackable Yes
Subcategory Network hubs and switches
Switching Type 25 Gigabit Ethernet
Connectivity
Interface Provided 1 x 1000Base-T RJ-45 management, 1 x USB Type C, 48 x 1/10/25Gbit LAN SFP28, 8 x 100Gbit/40Gbit LAN QSFP28
Port Quantity 48
Port Type 1/10/25 Gigabit SFP28
Ports Type (2nd) 40/100 Gigabit QSFP28
Power
Frequency 50/60 hertz
Hot-Plug Yes
Power Provided 650 watt
Power Supplies Installed 2
Power Supplies Supported 2
Redundant Power Supply Yes
Redundant Power Supply Supported 1+1 (with optional power supply)
Technical Information
Encryption AES
Humidity Range Storage 10 – 90% (non-condensing)
Max Operating Temperature 113°F
Max Storage Temperature 104°F
Min Operating Temperature 32°F
Min Storage Temperature -40°F
MTBF 457,244 Hours
Operating Humidity 10 – 90% (non-condensing)
Product Information
Airflow Direction Front to back
Authentication Method RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity Latency: 0.8 μs, 4095 VLANs, VRF instances: 64, 256 PVLANs, 8192 L2/L3 multicast groups, 256 Trunk groups
Device Type Internal power supply
Packaged Quantity 1
Performance 9.6 Tbps stacking bandwidth, 2 Bpps forwarding capacity, 4 Tbps switching capacity
Ports (2nd) Quantity 8
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1U
Weight 19.4 lbs
Width 17.3 inch
Depth 17.5 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards EN 60825-1, EN 60950-1:2006, FCC Part 15 A, UL 60950-1, RoHS 6/6, WEEE
ENERGY STAR Certified No
