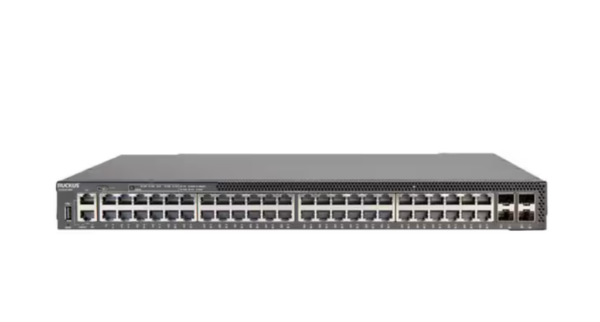

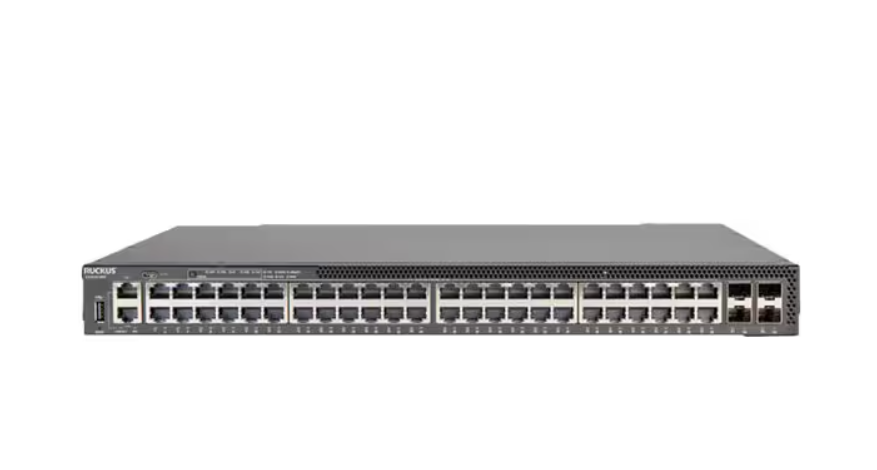

Ruckus ICX 8200-48PF – switch – 48 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • Number of Ports: 48

AED37,599.00

Add to Wishlist

Know your gear

The Ruckus Class 4 PoE Switch is designed to handle wireless first and IoT campus networks. This intelligent, scalable edge switch delivers enterprise-class functionality at an affordable price without compromising performance and reliability. This switch comes with 48 ports.
SKU: ICX8200-48PF Category: Tag:
Category Specification
Overview
Brand Ruckus
Product Line Ruckus ICX
Model 8200-48PF
Manufacturer Ruckus Wireless
Memory
Flash Memory Installed 8 GB
RAM Installed 4 GB
Network & Communication
Advanced Switching Layer 3
Form Factor Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 32K entries
Manageable Yes
Max Units in a Stack 12
PoE Budget 740 watt
Ports 48
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, DHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet
Routing Protocol GRE, OSPF, Static IPv4 routing, Static IPv6 routing, VRRP
Stackable Stackable
Subcategory Network hubs and switches
Connectivity
Interface Provided 1 x RJ-45 out-of-band network management, 1 x serial (console) RJ-45 management, 1 x USB storage, 1 x USB-C console management, 4 x 25 GbE SFP28 uplink/stacking, 48 x 10/100/1000 Base-T (PoE+) RJ-45
Port Quantity 48
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 25 GbE SFP28 (stacking/uplink)
Power
Frequency 50 – 60 hertz
Power Provided 880 watt
Power Supplies Installed 1
Power Supplies Supported 1
Required Voltage AC 100 – 240 volt
Technical Information
Encryption AES
Humidity Range Storage 10 – 90% (non-condensing)
Max Operating Temperature 113°F
Max Storage Temperature 158°F
Min Operating Temperature 32°F
Operating Humidity 10 – 90% (non-condensing)
Product Information
Airflow Direction Front and side to back
Authentication Method RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity Spanning Tree Protocol instances: 253, Virtual interfaces (VLANs): 4095
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding performance: 220 Mpps, Stacking bandwidth: 1.2 Tbps, Switching capacity: 296 Gbps
Ports (2nd) Quantity 4
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Weight 12.15 lbs
Width 17.3 inch
Depth 14.6 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards CAN/CSA-C22.2 No. 62368-1, EN 300 386, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN55024, FCC Part 15 B Class A, ICES-003, KN32 Class A, KN35 Class A, TCVN 7189 Class A, TCVN 7317, UL 62368-1, VCCI Class A
