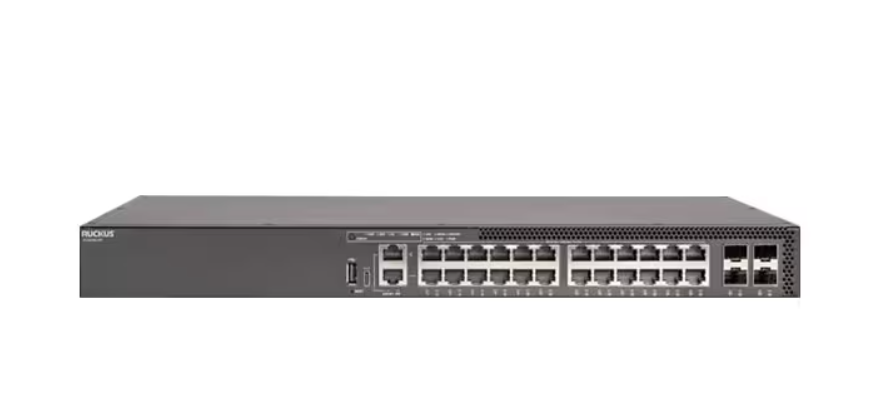

Ruckus ICX 8200 – switch – 24 ports – managed – rack-mountable – TAA Compliant

Add to Wishlist

Quick tech specs

  • Switch
  • managed
  • front and side to back
  • PoE++ (740 W)
  • L3
  • 24 x 100/1000/2.5G (PoE++)
  • rack-mountable
  • TAA Compliant

AED41,099.00

Add to Wishlist

Know your gear

The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability.

The RUCKUS ICX 8200 raises the bar with up to 8x 25GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and “pay as you grow” scalability of stackable solution.

SKU: ICX8200-24ZP Category: Tag:
Category Specification
Overview
Brand Ruckus
Product Line Ruckus ICX
Model 8200
Manufacturer Ruckus Wireless
Memory
Flash Memory Installed 8 GB
RAM Installed 4 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
Features 1 fan, ARP support, Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, DDos attack prevention, DHCP relay, DHCP server, DHCP support, Dynamic VLAN Support (GVRP), Flow control, GARP VLAN Registration Protocol (GVRP), IGMP proxy, IGMP snooping, Inter-Packet Gap (IPG) adjustment, Link Fault Signaling (LFS), MAC address filtering, Metro Ring Protocol (MRP) support, MLD snooping, Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM snooping, Port Loop Detection, Port mirroring, Private VLAN, Protocol Independent Multicast (PIM), Q-in-Q tunneling, Rapid Spanning Tree Protocol (RSTP) support, Remote Fault Notification (RFN), Root Guard, sFlow, Spanning Tree Protocol (STP) support, Uni-Directional Link Detection (UDLD), Virtual Switch Redundancy Protocol (VSRP) support, VLAN / port mapping, VLAN support, Weighted Round Robin (WRR) queuing
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 32K entries
Manageable Yes
Max Units In A Stack 12
PoE Budget 740 watt
Ports 24
Power Over Ethernet (PoE) PoE++
Product Type Switch
Remote Management CLI, DHCP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet
Routing Protocol GRE, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, OSPF, OSPFv2, OSPFv3, Policy-based routing (PBR), Static IPv4 routing, Static IPv6 routing, VRF, VRRP, VRRPE, VRRPv3
Stackable Stackable
Subcategory Network hubs and switches
Connectivity
Interface Provided 1 x RJ-45 out-of-band network management, 1 x serial (console) RJ-45 management, 1 x USB storage, 1 x USB-C console management, 24 x 100/1000/2.5G (PoE++) RJ-45 90 W, 4 x 25 GbE SFP28 uplink/stacking
Port Quantity 24
Port Type 100/1000/2.5G (PoE++)
Power
Frequency 50 – 60 hertz
Hot-Plug Hot-plug
Power Provided 950 watt
Power Supplies Installed 1
Power Supplies Supported 1
Redundant Power Supply Yes
Redundant Power Supply Supported 1+1
Required Voltage AC 100-240 volt
Technical Information
Encryption AES
Humidity Range Storage 10 – 90% (non-condensing)
Max Operating Temperature 113 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
MTBF 936,765 Hours
Operating Humidity 10 – 90% (non-condensing)
Product Information
Airflow Direction Front and side to back
Authentication Method RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
Capacity Spanning Tree Protocol instances: 253, Virtual interfaces (VLANs): 4095
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding performance: 237 Mpps, Stacking bandwidth: 1.2 Tbps, Switching capacity: 320 Gbps
Dimensions & Weight
Height 1.7 inch
Height (Rack Units) 1
Width 17.3 inch
Depth 11 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards BSMI, CAN/CSA-C22.2 No. 62368-1, Directive 2006/66/EC, Directive 2014/30/EU, Directive 2014/35/EU, Directive 94/62/EC, EN 300 386, EN 55032, EN 55035, EN 60825, EN 61000-3-2, EN 61000-3-3, EN 62368-1, EN55024, FCC Part 15 B Class A, ICES-003, IEC 60068-2-36, IEC 60950-1, IEC 62368-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-6, KN32 Class A, KN35 Class A, REACH 1907/2006/CE, RoHS 2011/65/EU, TCVN 7189 Class A, TCVN 7317, UL 62368-1, VCCI Class A, WEEE 2012/19/EU
TAA Compliant Yes
