901-R750-WW00 Overview
Ruckus 901-R750-WW00 is a ZoneFlex R750 dual-band (5GHz and 2.4GHz concurrent) 802.11ax wireless access point, 4×4:4 streams, adaptive antennas, dual ports, onboard BLE and Zigbee, PoE support. Includes adjustable acoustic drop ceiling bracket. One Ethernet port is 2.5GbE. Does not include power adaptor.
Quick Spec
Figure 1 shows the appearance of 901-R750-WW00.
Table 1 shows the quick spec.
| Model | 901-R750-WW00 |
| Feature/Description | High-end
802.11ax 4×4 dual concurrent AP with MU-MIMO, BeamFlex+ and 2.5Gbps backhaul |
| Maximum PHY rate | 2400 Mbps (5GHz)
1148 Mbps (2.4GHz) |
| Wi-Fi technology | 802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ |
| Concurrent users | 1024 |
| Radio chains: streams | 4×4:4 |
| Antenna patterns (per band) | 4,000+ |
Product Details
Figure 2 shows the front panel of 901-R750-WW00.

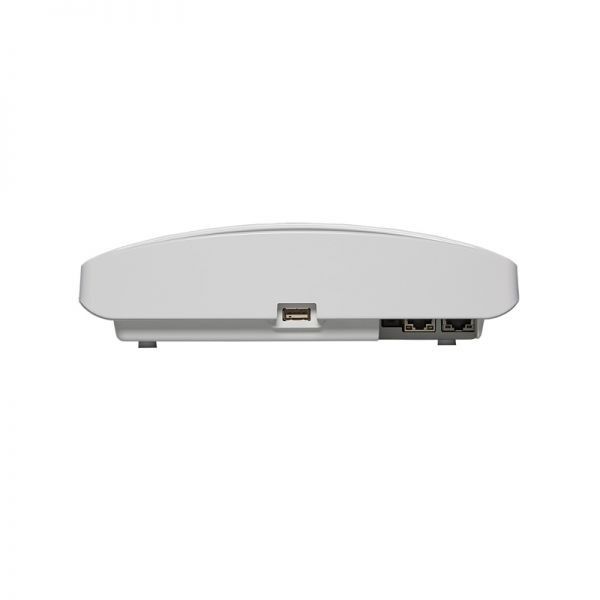

Figure 3 shows the back panel of 901-R750-WW00.
Ruckus ZoneFlex R750 AP provides these features:
Connect More Devices Simultaneously
Improve device performance, by enabling more simultaneous device connections with built-in 8 spatial streams (4×4:4 in 5GHz, 4×4:4 in 2.4GHz), MU-MIMO and OFDMA technology.
High Density Performance
Provides exceptional end-user experience within large meeting halls, general enterprise spaces, and large classrooms with the Ruckus Ultra-High-Density Technology Suite.
Converged Access Point
Allows customers to eliminate siloed networks and unify WiFi and non-WiFi wireless technologies into one single network by using built-in BLE and Zigbee, and also expanding to any future wireless technologies through the USB port.
Multigigabit Access Speeds
Optimized multi-gigabit Wi-Fi performance delivered using the built-in 2.5GbE port to connect to multigigabit switches.
Multiple Management Options
Manage the R750 with on premise physical/ virtual appliances and control auto-provisioning for faster deployment and seamless firmware upgrades.
Enhanced Security
The latest Wi-Fi security standard with WPA3 and receive enhanced protection from man-in-the-middle attacks in the most secure way.
More Than Wi-Fi
Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics.
Compare to Similar Items
Table 2 shows the comparison.
| Model | 901-R750-WW00 | 901-R730-WW00 | 901-R720-WW00 | 901-R710-WW00 |
| Feature/Description | High-end
802.11ax 4×4 dual concurrent AP with MU-MIMO, BeamFlex+ and 2.5Gbps backhaul |
High-end
802.11ax 8×8 dual concurrent AP with MU-MIMO, BeamFlex+ and 5Gbps backhaul |
High-end
802.11ac Wave 2 dual- concurrent AP with MU-MIMO BeamFlex+ and 2.5Gbps backhaul |
High-end
802.11ac Wave 2 dual- concurrent AP with MU-MIMO and BeamFlex+ |
| Maximum PHY rate | 2400 Mbps (5GHz)
1148 Mbps (2.4GHz) |
4800 Mbps (5GHz)
1148 Mbps (2.4GHz) |
1733 Mbps (5GHz)
600 Mbps (2.4GHz) |
1733 Mbps (5GHz)
600 Mbps (2.4GHz) |
| Wi-Fi technology | 802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ | 802.11ax (2.4 GHz, 5GHz) | 802.11ac (5GHz)
802.11n (2.4GHz) |
802.11ac (5GHz)
802.11n (2.4GHz) |
| Concurrent users | 1024 | 1024 | 512 | 512 |
| Radio chains: streams | 4×4:4 | 8×8:8 | 4×4:4 | 4×4:4 SU-MIMO
4×4:3 MU-MIMO |
| Antenna patterns (per band) | 4,000+ | 4,000+ | 4,000+ | 4,000 |
901-R750-WW00 Specification
901-R750-WW00 Specification |
|
| Feature/Description | High-end
802.11ax 4×4 dual concurrent AP with MU-MIMO, BeamFlex+ and 2.5Gbps backhaul |
| Maximum PHY rate | 2400 Mbps (5GHz)
1148 Mbps (2.4GHz) |
| Wi-Fi technology | 802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ |
| Concurrent users | 1024 |
| Radio chains: streams | 4×4:4 |
| Antenna patterns (per band) | 4,000+ |
| Antenna gain | Up to 3dBi |
| PD-MRC | Yes |
| Rx sensitivity (2.4/5GHz) | -102dBm |
| ChannelFly | Yes |
| SmartMesh | Yes |
| USB (IoT Ready) | Yes |
| Ethernet ports | 1x1GbE 1×2.5GbE |
| Integrated BLE/ZigBee | Yes |
| WLAN Control and Management | · ZoneDirector
· SmartZone · Unleashed · RUCKUS Cloud |
