Ruckus R850 901-R850-WW00 – Ruckus Indoor AP

Add to Wishlist

AED4,399.00

Add to Wishlist

901-R850-WW00 Overview

Ruckus 901-R850-WW00 is a ZoneFlex R850 dual-band (5GHz and 2.4GHz concurrent) 802.11ax wireless access point, Ultra-High Density performance, 12 spatial streams, adaptive antennas, PoE support. Includes adjustable acoustic drop ceiling bracket. Two Ethernet ports with 1GbE and 5Gbe. Does not include power adaptor.

Quick Spec

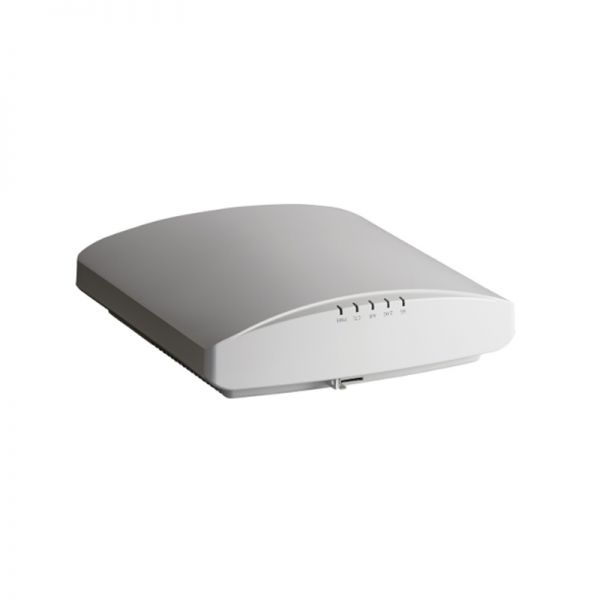

Figure 1 shows the appearance of 901-R850-WW00.

901-R850-WW00
Table 1 shows the quick spec.

Model 901-R850-WW00
Antenna Gain Up to 2 dBi
Antenna Patterns, per band 4000+
BeamFlex Yes
ChannelFly Yes
Concurrent Users 1024
Controller Support Cloud | SmartZone | Standalone | ZD

Product Details

Figure 2 shows the front panel of 901-R850-WW00.
901-R850-WW00 front

Figure 3 shows the back panel of 901-R850-WW00.

901-R850-WW00 back
Ruckus ZoneFlex R850 AP provides these features:

Connect More Devices Simultaneously

Improve device performance, by enabling more simultaneous device connections with built-in 8 spatial streams (4×4:4 in 5GHz, 4×4:4 in 2.4GHz), MU-MIMO and OFDMA technology.

Ultra High Density Performance

Provides exceptional end-user experience within large meeting halls, general enterprise spaces, and large classrooms with the Ruckus Ultra-High-Density Technology Suite.

Converged Access Point

Allows customers to eliminate siloed networks and unify WiFi and non-WiFi wireless technologies into one single network by using built-in BLE and Zigbee, and also expanding to any future wireless technologies through the USB port.

Multigigabit Access Speeds

Optimized multi-gigabit Wi-Fi performance delivered using the built-in 2.5GbE port to connect to multigigabit switches.

Better Mesh Networking

Minimize complexity by reducing expensive cabling with SmartMesh that dynamically creates self-forming, self-healing mesh networks.

Multiple Management Options

Manage the R850 with on premise physical/ virtual appliances and control auto-provisioning for faster deployment and seamless firmware upgrades.

Enhanced Security

Enhanced securityThe latest Wi-Fi security standard with WPA3 and receive enhanced protection from man-in-the-middle attacks in the most secure way.

More Than Wi-Fi

Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics.

Compare to Similar Items

Table 2 shows the comparison.

Model 901-R650-WW00 901-R850-WW00 901-R550-WW00
Maximum PHY rate 2400 Mbps (5GHz)

574 (2.4GHz)

 2400 Mb/s (5GHz)

1148 Mb/s (2.4GHz)

 1200 Mb/s (5GHz)

574 Mb/s (2.4GHz)
Concurrent users 512 1024 512
Radio chains: streams 5GHz: 4×4:4 MU-MIMO

2.4GHz: 2×2:2 MU-MIMO

 8×8:8 SU-MIMO & MU-MIMO 2×2:2 (5 GHz/2.4 GHz)
Antenna patterns (per band) 128 4000+ 64
Antenna gain Up to 3dBi Up to 2 dBi Up to 3 dBi
Ethernet ports 1 x 1 GbE

1 x 2.5 GbE

 1 x 1 GbE | 1x 1/2.5/5 Gb/s 2 x 1GbE
SKU: 901-R850-WW00 Category: Tag:

901-R850-WW00 Specification

901-R850-WW00 Specification
Antenna Gain Up to 2 dBi
Antenna Patterns, per band 4000+
BeamFlex Yes
ChannelFly Yes
Concurrent Users 1024
Controller Support Cloud | SmartZone | Standalone | ZD
Ethernet Ports 1 x 1 GbE | 1x 1/2.5/5 Gb/s
IoT Ready Yes
PD-MRC Yes
PHY Rate at 2.4 GHz, maximum 1148 Mb/s
PHY Rate at 5 GHz, maximum 2400 Mb/s
Radio Chains: Streams 8×8:8 SU-MIMO & MU-MIMO
Rx Sensitivity at 2.4 GHz -91 dBm
Rx Sensitivity at 5 GHz -91 dBm
SmartMesh Yes
USB USB 2.0
Venue Type Education | Hospitality | Public Venue | Transportation
Venue Sub-Type Convention Floor | Lecture Hall | Library | Transit Stations | Venue Common Places
Wi-Fi Interface Standard IEEE 802.11a/b/g/n/ac/ax
Wi-Fi Interface Standard at 2.4 GHz 802.11ax
Wi-Fi Interface Standard at 5 GHz 802.11ax
