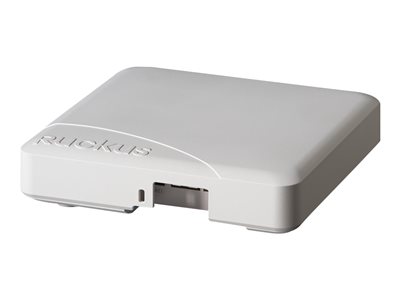

Ruckus ZoneFlex R500 – wireless access point 901-R500-US00

Availability:

10 in stock


2,199.00 د.إ

10 in stock

Ruckus Wireless ZoneFlex R500 Wireless Access Point (Dual-Band 802.11ac, 2×2:2 Streams, BeamFlex+, Dual Ports, 802.3af PoE) 901-R500-US00



Overview

The Ruckus ZoneFlex R500 indoor AP is optimized for mid-sized organizations requiring higher performance and support for more devices.

Mid-sized businesses, branch offices, schools, hotel chains, retail outlets, restaurants, multi-tenant office buildings, hotspots – these are just some of the environments where high-speed, easy to manage Wi-Fi is critical to productivity, revenue generation, and customer satisfaction.

This mid-range 802.11ac wireless access point incorporates top performance patented technologies found only in the Ruckus Wi-Fi portfolio.

BeamFlex+ adaptive antenna technology directs each packet over the best performing signal path, extending coverage range and mitigating interference automatically.

ChannelFly technology chooses the best channel to give users the highest throughput – delivering up to 50 percent capacity gain over competitive dynamic channel selection approaches.

Whether organizations are deploying ten or ten thousand APs, the R500 is also easy to manage through the appliance, virtual and cloud management options.

The R500: Supports up to 512 clients on a single AP; Supports more services – including streaming HD media, cloud applications, web browsing, and email; Easily handles the transmission of challenging content – including jitter and latency sensitive streaming HD media; Uses fewer APs to cover more area with extended range capabilities; Improves throughput automatically delivering up to 50 percent capacity gains; Provides more wireless coverage and reduces costs with less cable runs; Reduces costs with support for both standard PoE and PoE+.

  • Ā· Supports more devices – connecting up to 512 clients per AP
  • Ā· Supports more services—including streaming HD media, cloud applications, web browsing, and email—with concurrent dual-band 2.4 GHz and 5GHz radios and four queues per client station
  • Ā· Easily handles the transmission of challenging content—including jitter and latency sensitive streaming HD media — with 802.11ac Wave 1 two-stream MIMO 2×2:2
  • Ā· Use fewer APs to cover more area with extended range capabilities provided by BeamFlex utilizing up to 128 directional antenna patterns
  • Ā· Improves throughput automatically with ChannelFly technology and dynamic channel selection – delivering up to 50 percent capacity gains
  • Ā· Provides more more wireless coverage and reduces costs with less cable runs through the use of SmartMesh and PoE Ā· Reduces costs with support for both standard PoE and PoE+ options Ā· Fits the aesthetics of virtually any environment with a range of mounting options and sleek, low-profile design
SKU: 901-R500-US00 Category: Tags: , , ,
General
Device Type Wireless access point
Width 6.2 in
Depth 6.2 in
Height 1.6 in
Weight 12.34 oz
Localization United States
Networking
Form Factor External
Connectivity Technology Wireless
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Network / Transport Protocol L2TP, PPPoE
Remote Management Protocol SNMP 1, SNMP 2, SNMP, SNMP 3, HTTP, HTTPS, TFTP, SSH, CLI
Frequency Band 2.4 GHz, 5 GHz
Selectable Channels Qty 11
Capacity Concurrent stations: 500Ā Simultaneous VoIP clients: 30
Status Indicators Power, status
Features Auto-sensing per device, DHCP support, NAT support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), manageable, wall mountable, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), ceiling mountable, security lock slot (cable lock sold separately)
Encryption Algorithm AES, WPA-PSK
Authentication Method RADIUS, LDAP, Basic Service Set Identifier (BSSID), Active Directory
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.11ac
Antenna
Antenna Internal
Expansion / Connectivity
Interfaces 1 x 1000Base-T (PoE) – RJ-45Ā 1 x 1000Base-T – RJ-45
Miscellaneous
Compliant Standards UL 2043, RoHS, WEEE, EN 60601-1-2, EN 50121-4, IEC 61373, EN 50121-1
Power
Power Over Ethernet (PoE) Supported PoE
General
Depth 6.2 in
Device Type Wireless access point
Height 1.6 in
Localization United States
Weight 12.34 oz
Width 6.2 in
Antenna
Antenna Internal
Expansion / Connectivity
Interfaces 1 x 1000Base-T (PoE) – RJ-45 ¦ 1 x 1000Base-T – RJ-45
Miscellaneous
Compliant Standards UL 2043, RoHS, WEEE, EN 60601-1-2, EN 50121-4, IEC 61373, EN 50121-1
Networking
Authentication Method RADIUS, LDAP, Basic Service Set Identifier (BSSID), Active Directory
Capacity Concurrent stations: 500 ¦ Simultaneous VoIP clients: 30
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.11ac
Connectivity Technology Wireless
Data Link Protocol IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n
Encryption Algorithm AES, WPA-PSK
Features Auto-sensing per device, DHCP support, NAT support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), manageable, wall mountable, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), ceiling mountable, security lock slot (cable lock sold separately)
Form Factor External
Frequency Band 2.4 GHz, 5 GHz
Network / Transport Protocol L2TP, PPPoE
Remote Management Protocol SNMP 1, SNMP 2, SNMP, SNMP 3, HTTP, HTTPS, TFTP, SSH, CLI
Selectable Channels Qty 11
Status Indicators Power, status
Power
Power Over Ethernet (PoE) Supported PoE
