Ruckus ZoneFlex T310 Series Outdoor 2×2:2 2.4/5GHz 802.11ac Wave 2 Wi-Fi access points with omni and directed antennae

Add to Wishlist

3,999.00 د.إ

Add to Wishlist

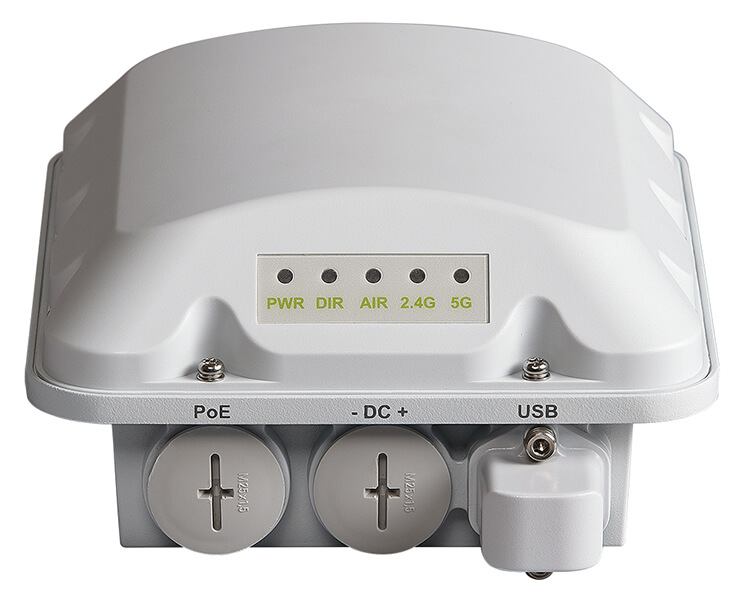

Ruckus ZoneFlex T310 Series
Outdoor 2×2:2 2.4/5GHz 802.11ac Wave 2 Wi-Fi access points with omni and directed antennae

Modern Wi-Fi device users expect reliable connectivity— anywhere, anytime. But in crowded outdoor venues with thousands of users and constant RF noise, they are often frustrated by poor coverage, dropped connections, and reduced data rates. These aggravating Wi-Fi experiences can easily translate to negative perceptions of the venue and the service provider, resulting in loss of business. The quality of the network experience becomes the “litmus test” for acceptance or rejection.

As the market leader in outdoor Wi-Fi deployments, Ruckus knows that one AP solution cannot meet every possible challenge of varied and complex outdoor requirements. This is why the Ruckus T310 802.11ac Wave 2 series is designed with more variety than any other outdoor AP in the market today. Available with either internal omni-directional antennas or internal high-gain directional antenna models, the T310 Series uses patented Ruckus antenna optimization and interference mitigation technologies to improve throughput, connection reliability, and deliver industry-leading 802.11ac Wave 2 performance to every connected client. At the same time, the T310 Series is designed for fast, simple installation with an ultra-lightweight, low profile, IP-67 rated enclosure that can stand up to the most challenging outdoor environments.

At Ruckus, we know that outdoor AP deployments are especially challenging for installation and maintenance, which is why Ruckus outdoor APs use a variety of technologies, like SmartMesh that help simplify outdoor AP deployment.

The Ruckus T310 Series is perfect for high-density outdoor public venues such as airports, convention centers, plazas, malls, smart cities, and other dense urban environments. By providing a superior Wi-Fi experience to every user in high-density outdoor locations, venue operators can improve guest satisfaction and loyalty, deliver new kinds of wireless application services, and increase revenues.

The Ruckus T310 Series incorporates patented technologies found only in the Ruckus Wi-Fi portfolio.

  • Extended coverage with patented BeamFlex+™ utilizing multi-directional antenna patterns.
  • Improve throughput with ChannelFly, which dynamically finds less congested Wi-Fi channels to use.

Whether you’re deploying ten or ten thousand APs, the T310 Series is easy to manage through Ruckus’ appliance and virtual management options.

BENEFITS

SIMPLICITY

Ruckus’ Outdoor APs make Wi-Fi deployments extremely simple to deploy with one-touch technologies like SmartMesh™.

STUNNING WI-FI PERFORMANCE

Extends coverage with patented BeamFlex+™ adaptive antenna technology while mitigating interference by utilizing up to 64 directional antenna patterns.

GREAT OUTDOOR WI-FI

Experience high performance outdoor 802.11ac Wave 2 Wi-Fi with IP-67 weather proofing.

MULTIPLE MANAGEMENT OPTIONS

Manage the T310 Series with physical or virtual controller appliances.

SERVE MORE DEVICES

Connect more devices simultaneously with two MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while also enhancing non-Wave 2 device performance.

AUTOMATE OPTIMAL THROUGHPUT

ChannelFly™ dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.

MORE THAN WI-FI

Support services beyond Wi-Fi with Ruckus IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics.


ACCESS POINT ANTENNA PATTERN

Ruckus’ BeamFlex+ adaptive antennas allow the T310 AP to dynamically choose among a host of antenna patterns (up to 64 possible combinations) in real-time to establish the best possible connection with every device. This leads to:

  • Better Wi-Fi coverage
  • Reduced RF interference

Traditional omni-directional antennas, found in generic access points, oversaturate the environment by needlessly radiating RF signals in all directions. In contrast, the Ruckus BeamFlex+ adaptive antenna directs the radio signals per-device on a packet by-packet basis to optimize Wi-Fi coverage and capacity in real-time to support high device density environments. BeamFlex+ operates without the need for device feedback and hence can benefit even devices using legacy standards.

Figure 1.Example of Beamflex+ pattern
Figure 2.T310d 2.4GHz Azimuth
Antenna Patterns
Figure 3.T310d 5GHz Azimuth
Antenna Patterns
Figure 4.T310d 2.4GHz Elevation
Antenna Patterns
Figure 5.T310d 5GHz Elevation
Antenna Patterns

Note: The outer trace represents the composite RF footprint of all possible BeamFlex+ antenna patterns, while the inner trace represents one BeamFlex+ antenna pattern within the composite outer trace.

SKU: Ruckus ZoneFlex T310C Category: Tags: , , , , , , , , , , ,

WIRELESS

  • 802.11ac Wave 2 Multi-User MIMO (MU-MIMO)
  • Concurrent dual-band (5GHz/2.4GHz) support
  • 2×2:2ss with total 1167Mbps WLAN data rate
  • BeamFlex+ adaptive antenna technology and advanced RF management
  • Up to 10dB interference mitigation
  • Polarization diversity for optimal mobile device performance
  • WPA-PSK (AES), 802.1X support for RADIUS and Active Directory**
  • Airtime fairness
  • Admission control **
  • Band balancing and Load balancing**
  • Dynamic, per-user rate-limiting for hotspot WLANs

INTERFACES

  • 1 x 1GbE port
  • USB 2.0, Type A connector – ideal for BLE dongles and sensors (on the T310d, n, s models)

IP CERTIFICATION

  • IP-67 rated, -40°C to +65°C (temp range varies with model)

POWER

  • 802.3af PoE Input (Class 3 PD)
  • DC Input (on the T310d, n, s models)

SOFTWARE

  • Standalone or centrally managed by SmartZone, ZoneDirector
  • SPoT™ Real-time location engine and analytics software
  • Cloudpath™ (security and management software)
  • SmartCell Insight (Network analytics engine)
  • NAT and DHCP
  • Smart QoS
  • Zero-IT and Dynamic PSK
  • Captive portal and guest accounts
  • Application recognition and control
  • Secure HotSpot
  • SmartMesh
MODEL ANTENNA LOW TEMP USB DC POWER
T310c Omni -20ºC N N
T310d Omni -40ºC Y Y
T310n Narrow Sector(30º) -40ºC Y Y
T310c Narrow Sector(120º) -40ºC Y Y
