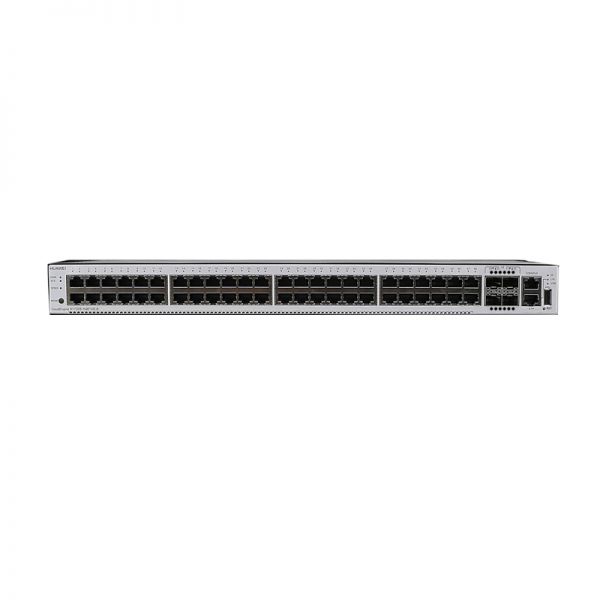

S1730S-H48T4S-A – Huawei S1730 Switches
| Model: | S1730S-H48T4S-A – Huawei S1730 Switches |
| Detail: |
S1730S-H48T4S-A (48 10/100/1000BASE-T Ethernet ports, 4 Gigabit SFP, AC power supply)
|
AED10,799.00
S1730S-H48T4S-A is a Huawei S1730S series switch, providing 48 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports, and AC power supply. Huawei CloudEngine S1730S series switches are designed for small to medium-sized businesses, including Internet cafes, hotels, schools, and others. With feature-rich services and a silent energy-saving design thatās easy to install and maintain, CloudEngine S1730S helps customers build secure, reliable, and high-performance networks.
Quick Spec
Table 1 shows the quick spec.
| Model | CloudEngine S1730S-H48T4S-A |
| Forwarding Performance | 77.38 mpps |
| Switching CapacityĀ | 216 Gbit/s |
| Fixed Ports | 48 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports |
| Power Supply | Built-in AC power module |
| Dimension (H Ć W Ć D) | 43.6mm Ć 442mm Ć 220mm |
Note:
| ā | 48 x 10/100/1000Base-T Ethernet ports | ā£ | One RST button |
| ā” | 4 x GE SFP ports | ā¤ | One console port |
| ā¢ | One ETH management port | ā„ | One USB port |
Note:
| ā | Ground screw |
| ā” | Jack reserved for AC power cable locking strap |
| ā¢ | AC power socket |
S1730S-H48T4S-AĀ Specification
Forwarding Performance
77.38 mpps
Switching CapacityĀ
216 Gbit/s
Fixed Ports
48 x 10/100/1000Base-T Ethernet ports, 4 x GE SFP ports
Power Supply
Built-in AC power module
Dimension (H Ć W Ć D)
43.6mm Ć 442mm Ć 220mm
Chassis Height
1U
Rated Voltage Range
– 100V AC to 240V AC, 50/60 Hz
– High-voltage DC input: 240V DC
Maximum Voltage Range
– 90V AC to 264V AC, 47 Hz to 63 Hz
– High-voltage DC input: 190V DC to 290V DC
Maximum Power Consumption
53W
Operating Temperature
5Ā°C to +50Ā°C (23Ā°F to 122Ā°F) at an altitude of 0-1800m (0-5906 ft.)
Storage Temperature
-40Ā°C to +70Ā°C (-40Ā°F to +158Ā°F)
