S1730S-S8T4S-A1 Switch

Add to Wishlist

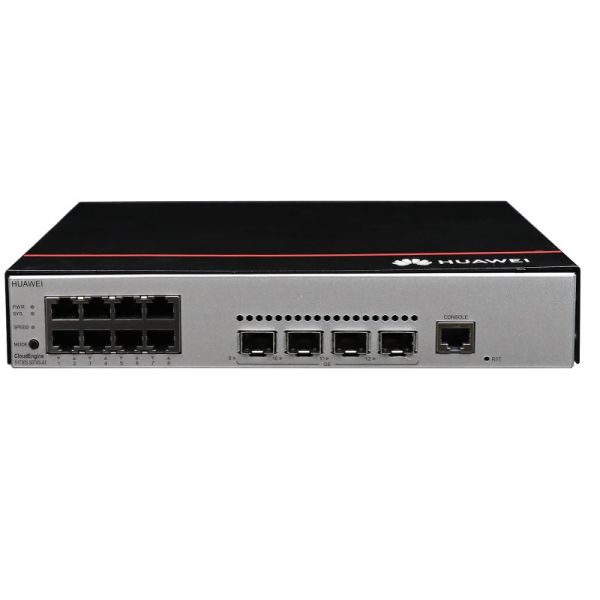

Model: S1730S-S8T4S-A1 Switch
Detail:
S1730S-S8T4S-A1 (8 10/100/1000BASE-T Ethernet ports, 4 Gigabit SFP, AC power supply)

313,599.00 د.إ

Add to Wishlist

S1730S-S8T4S-A1 is a Huawei S1730S series switch, providing 24 10/100/1000BASE-T Ethernet ports, 4 Gigabit SFP, and AC power supply. Huawei CloudEngine S1730S series switches are designed for small to medium-sized businesses, including Internet cafes, hotels, schools, and others. With feature-rich services and a silent energy-saving design that’s easy to install and maintain, CloudEngine S1730S helps customers build secure, reliable, and high-performance networks.

Quick Spec

Table 1 shows the quick spec.

Model CloudEngine S1730S-S8T4S-A1
Memory 512 MB
Flash memory 512 MB
Console port RJ45
Typical power consumption [W] 21.2 W
Typical heat dissipation [BTU/hour] 72.34 BTU/hour

SKU: S1730S-S8T4S-A1 Category: Tag:

S1730S-S8T4S-A1 Specification
Item Specification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.84 in. x 7.1 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250.0 mm x 187.0 mm (1.72 in. x 9.84 in. x 7.36 in.)
Typical power consumption [W] 21.2 W
Typical heat dissipation [BTU/hour] 72.34 BTU/hour
Maximum power consumption [W] 26.3 W
Maximum heat dissipation [BTU/hour] 89.74 BTU/hour
MTBF [year] 71.82 year
MTTR [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 43 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 31.5 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 1
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) (0 m to 1800 m altitude, non-industrial optical modules)

-5°C to +55°C (23°F to 131°F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km)
Short-term operating temperature [°C(°F)] Not supported
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The switch cannot be started when the ambient temperature is lower than 0°C (32°F).

The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distances greater than or equal to 70 km are used.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A] 0.8 A
Memory 512 MB
Flash memory 512 MB
Console port RJ45
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Not supported
Certification EMC certification

Safety certification

Manufacturing certification
