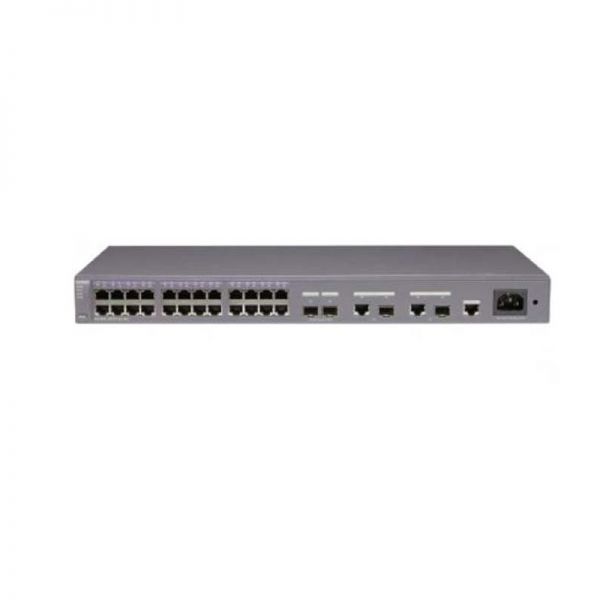

S2350-28TP-EI-DC Huawei S2300 Series Switch

Add to Wishlist
Model: S2350-28TP-EI-DC Huawei S2300 Series Switch
Detail:
S2350-28TP-EI-DC(24 Ethernet 10/100 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,DC-48V,front access)

AED3,799.00

Add to Wishlist

Huawei S2300 Series Switch S2350-28TP-EI-DC 24 Ethernet 10/100 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 DC-48V,front access, QoS, Comperhensive Layer 2 Feature.

Quick Specs

Table 1 shows the Quick Specs.

Product Code S2350-28TP-EI-DC
Part Number 02357739
Description S2350-28TP-EI-DC(24 Ethernet 10/100 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,DC-48V,front access)
Software Version V200R005C00 and later versions

NOTE:

This model does not match V200R005C00SPC500, V200R005C01, or V200R005C02.
Memory (RAM) 256 MB
Flash 200 MB
RPS Not supported
PoE Not supported
Dimensions (W x D x H) 442.0 mm x 220.0 mm x 43.6 mm (17.4 in. x 8.7 in. x 1.72 in.)
Maximum power consumption (100% throughput) 15.3 W
EAN 6920702797180
UOM PCS



Note:

ā‘  Twenty-four 10/100BASE-TX ports
ā‘” Two 1000BASE-X ports
ā‘¢ Two combo ports (10/100/1000BASE-T + 100/1000BASE-X)
ā‘£ One console port
ā‘¤ DC power terminal



Note:

ā‘  Ground screw



SKU: S2350-28TP-EI-DC Category: Tags: ,

S2350-28TP-EI-DC specification
Item Description
Memory (RAM) 256 MB
Flash 200 MB
Mean time between failures (MTBF) 44.3 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: Ā±6 kV
Power supply surge protection Ā±1 kV in differential mode, Ā±2 kV in common mode
Dimensions (W x D x H) 442.0 mm x 220.0 mm x 43.6 mm (17.4 in. x 8.7 in. x 1.72 in.)
Weight ā‰¤ 5 kg (11.02 lb)
Stack ports Two uplink 1000Base-X optical ports
RPS Not supported
PoE Not supported
Rated voltage range -48 V DC to -60 V DC
Maximum voltage range -36 V DC to -72 V DC
Maximum power consumption (100% throughput) 15.3 W
Operating temperature -5Ā°C to +50Ā°C (23Ā°F to 122Ā°F) at an altitude of 0-1800 m (0-5096 ft.)

NOTE:

When the altitude is between 1800 m (5096 ft.) and 5000 m (16404 ft.), the highest operating temperature reduces by 1Ā°C (1.8Ā°F) every time the altitude increases by 220 m (722 ft.).

The operating temperature of the switch is -5Ā°C to +45Ā°C (23Ā°F to 113Ā°F) when it uses SFP optical modules with 80 km or longer transmission distances.
Storage temperature -40Ā°C to +70Ā°C (-40Ā°F to +158Ā°F)
Noise under normal temperature (27Ā°C, sound power) Noise-free (no fans)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-2000 m (0-6562 ft.)
Certification EMC certification

Safety certification

Manufacturing certification
