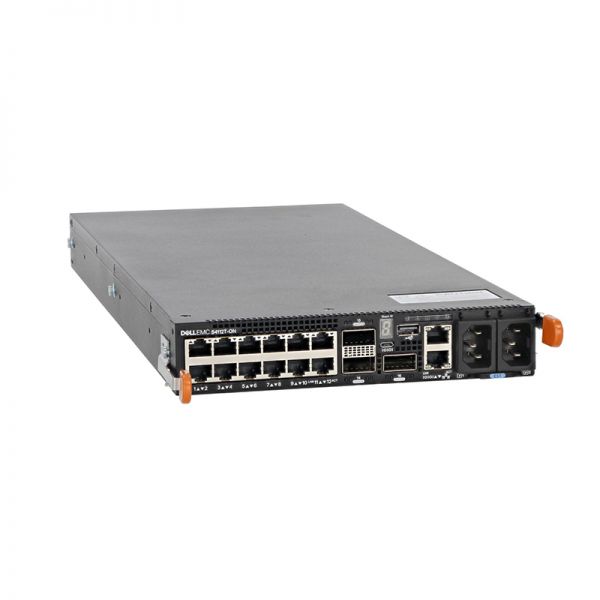

S4112T-ON – Dell Networking S4100-ON Switches

Model:	S4112T-ON – Dell Networking S4100-ON Switches
Detail:	Dell Networking S4112T, 12 x 10GBaseT, 3 x 100GbE QSFP28, IO to fan, 2 x AC PSU, OS10

34,599.00 د.إ

Table 1 shows the Quick Specs.

Product Code	S4112T-ON
Ports	12 x 10Gb RJ45
Power Over Ethernet (PoE)	No
Layer	Layer 3
Power Supplies Installed	2 Integrated Power Supply Units

S4112T-ON provides these features:

The S4112 is a 1RU, half-rack width 10/100GbE ToR switch with up to 12 ports of 10GbE (SFP+) or up to 12 ports of 10GBaseT ports, and up to three ports of 100GbE (QSFP28)
Multi-rate 100GbE ports support 10/25/40/50 GbE. 40GbE ports support 10GbE. 10GbE ports support 1GbE. Up to four different simultaneous speeds are possible in a given profile.
840Gbps (full-duplex) non-blocking, cut-through switching fabric delivers line-rate performance under full load on S4112F-ON and S4112T-ON
VXLAN gateway functionality support for bridging and routing the non-virtualized and the virtualized overlay networks with line rate performance
Converged Network support with DCB
IO panel to PSU airflow or PSU to IO panel airflow
Redundant, hot-swappable power supplies and fans (S4112-ON has redundant, fixed power supplies and fans)

S4112T-ON specification
Model	Dell Networking S4112T-ON
Ports	12 x 10Gb RJ45
Accessory Ports	3 x 100Gb QSFP28
Power Over Ethernet (PoE)	No
Layer	Layer 3
Power Supplies Installed	2 Integrated Power Supply Units
Air Flow	Normal Airflow – IO to PSU
Module Expansion Slots	N/A
Operating System	Open Network-Dell OS10 Installed
Licenses Installed	OS10 Enterprise
Management	Console Management
Chassis Type	1U Rack Mounted
Rack Mounting Kit	Half Width Tandem Switch Tray Not Included
Additional Information	Supports 3rd Party OS
