Network Switches & Routers
S5700-48TP-SI-AC 02352353 Huawei Quidway S5700 Switch
| Model: | S5700-48TP-SI-AC 02352353 Huawei Quidway S5700 Switch |
| Detail: |
44 10/100/1000Base-T and 4 GE Combo, AC 110/220V
|
AED6,799.00
Huawei S5700-SI series are gigabit Layer 3 Ethernet switches. The S5700-48TP-SI-AC supports 48 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP ports.
Quick Specs

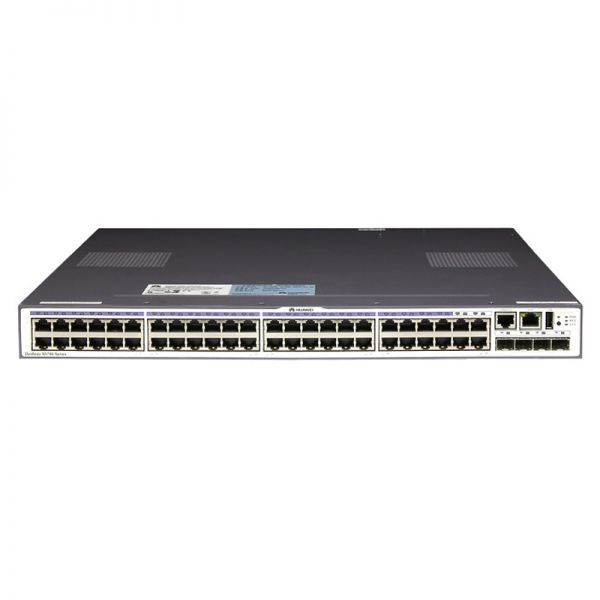

Figure 1 shows the appearance of Huawei S5700-48TP-SI-AC switch.
Table 1 shows the Quick Specs.
| Product Code | S5700-48TP-SI-AC |
| Ports | 48 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP ports |
| Forwarding Performance | 72 Mpps |
| Switching Capacity | 256 Gbit/s |
| Stack | Supported by stack card |
| Stack Ports | Two stack ports available on each stack card |
| Power | AC 110/220V |
| Heat Dissipation | Built-in fans for intelligent air cooling |
| Memory (RAM) | 256 MB |
| Flash | 32 MB |
| Dimensions (W x D x H) | 442.0 mm x 420.0 mm x 43.6 mm |
| Weight | 6.7 Kg |
Product Details
Figure 2 shows the front panel of Huawei S5700-48TP-SI-AC switch.
Note:
| ā | 44 Ć 10/100/1000BASE-T ports | ā£ | USB port |
| ā” | One console port | ā¤ | 4 Ć combo ports (10/100/1000BASE-T + 100/1000BASE-X) |
| ā¢ | ETH management port |
Figure 3 shows the back panel of Huawei S5700-48TP-SI-AC switch.
Note:
| ā | ESD jack | ā£ | ETH management port |
| ā” | Ground screw | ā¤ | Power switch |
| ā¢ | Rear card slot | ā„ | AC socket |
The Transceiver
Table 2 shows the recommended transceivers.
| Model | Description |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) |
Compare to Similar Items
Table 3 shows the comparison of Huawei S5700-24TP-SI-AC and S5700-48TP-SI-AC switches.
| Models | S5700-24TP-SI-AC | S5700-48TP-SI-AC |
| Ports | 24 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP ports | 48 Ethernet 10/100/1,000 ports, 4 of which are dual-purpose 10/100/1,000 or SFP ports |
| Power Supply | AC | AC |
| Software Version | Standard | Standard |
S5700-48TP-SI-AC Specifications |
|
| Manufacturer | Huawei |
| Manufacturer Part Number | S5700-48TP-SI-AC |
| Form Factor | Fixed, Stackable |
| Switch Port | 44 GE ports, 4 GE Combo ports |
| Power Over Ethernet (PoE) | Non-POE |
| Extended slot | Provides an extended slot for a stack card |
| Max Stack bandwidth | 48Gbps |
| DRAM Memory | 256 MB |
| Flash Memory | 32 MB |
| Performance | |
| Forwarding performance | 72Ā Mpps |
| MAC address table | IEEE 802.1d compliance |
| 16 K MAC address entries | |
| MAC address learning and aging | |
| Static, dynamic, and blackhole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| VLAN | 4 K VLANs |
| Reliability | RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover | |
| SEP | |
| STP, RSTP, and MSTP | |
| BPDU protection, root protection, and loop protection | |
| E-Trunk | |
| IP routing | Static routing, ECMP |
| RIPv1, RIPv2 and RIPng | |
| IPv6 features | Neighbor Discovery (ND) |
| Path MTU (PMTU) | |
| IPv6 ping, IPv6 tracert, and IPv6 Telnet | |
| ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type | |
| MLD v1/v2 snooping | |
| 6to4 tunnel, ISATAP tunnel, and manually configured tunnel | |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
| Multicast forwarding in a VLAN and multicast replication between VLANs | |
| Multicast load balancing among member ports of a trunk | |
| Controllable multicast | |
| Port-based multicast traffic statistics | |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Packet redirection | |
| Port-based traffic policing and two-rate three-color CAR | |
| Eight queues on each port | |
| WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms | |
| Re-marking of the 802.1p priority and DSCP priority | |
| Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination | |
| MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID | |
| Rate limiting in each queue and traffic shaping on ports | |
| Security | User privilege management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense | |
| Binding of the IP address, MAC address, interface, and VLAN | |
| Port isolation, port security, and sticky MAC | |
| Blackhole MAC address entries | |
| Limit on the number of learned MAC addresses | |
| 802.1x authentication and limit on the number of users on an interface | |
| AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC | |
| SSH v2.0 | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| CPU defense | |
| Blacklist and whitelist | |
| Management | |
| Management and maintenance | Stacking
MAC Forced Forwarding (MFF) Virtual cable test Port mirroring and RSPAN (remote port mirroring) Remote configuration and maintenance by using Telnet SNMP v1/v2/v3 RMON Web NMS HGMP System logs and alarms of different levels GVRP MUX VLAN |
| Power Supply Specifications | |
| Power Device | Power supply – Non-PoE |
| Power Redundancy | No |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Dimensions / Weight / Miscellaneous | |
| Width | 44.2cm |
| Depth | 43.6cm |
| Height | 22.0cm |
| Weight | 5.0kg |
| System Software | |
| Software Version | Standard Version |
| Manufacturer Warranty | |
| Service & Support | 1 year warranty |
