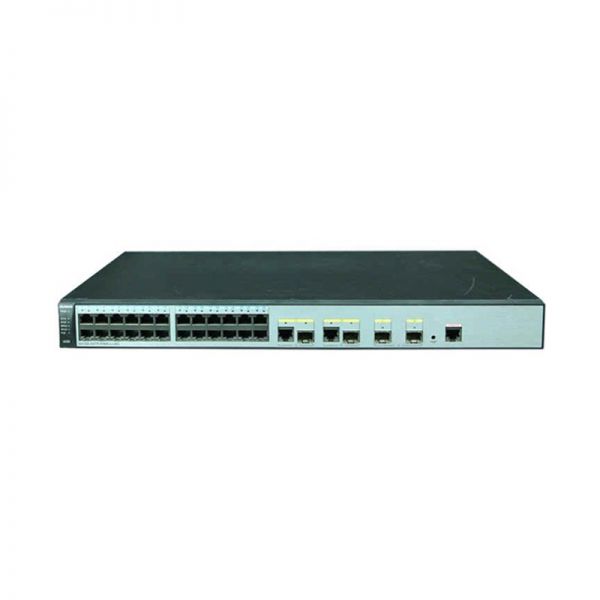

S5720-28TP-PWR-LI-AC – Huawei S5700 Series Switches

Add to Wishlist
Model: S5720-28TP-PWR-LI-AC – Huawei S5700 Series Switches
Detail:
S5720-28TP-PWR-LI-AC(24 Ethernet 10/100/1000 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,PoE+,370W POE

AED2,399.00

Add to Wishlist

S5720-28TP-PWR-LI-AC – Huawei S5700 Series Switches.S5720-28TP-PWR-LI-AC(24 Ethernet 10/100/1000 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,PoE+,370W POE AC 110/220V)

Quick Specs

Table 1 shows the Quick Specs.

Memory (RAM) 512 MB
Flash 240 MB
Mean time between failures (MTBF) 40 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±7 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Dimensions (W x D x H) 442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.)
Weight (including packaging materials) 3.6 kg (7.94 lb)
Stack ports Twenty-four 10/100/1000BASE-T ports and two 1000BASE-X ports
RTC Not supported
RPS Not supported
PoE Supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans)
  • Without PoE: 38.8 W
  • 100% PoE loads: 444.8 W (system power consumption: 75.2 W, PoE: 369.6 W)
Typical power consumption (30% of traffic load)

  • Tested according to ATIS standard
  • EEE enabled
  • No PoE power consumption
 27.4 W
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) less than 48.6 dBA
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Category:

S5720-28TP-PWR-LI-AC Specification
Memory (RAM) 512 MB
Flash 240 MB
Mean time between failures (MTBF) 40 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±7 kV
Power supply surge protection ±6 kV in differential mode, ±6 kV in common mode
Dimensions (W x D x H) 442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.)
Weight (including packaging materials) 3.6 kg (7.94 lb)
Stack ports Twenty-four 10/100/1000BASE-T ports and two 1000BASE-X ports
RTC Not supported
RPS Not supported
PoE Supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans)
  • Without PoE: 38.8 W
  • 100% PoE loads: 444.8 W (system power consumption: 75.2 W, PoE: 369.6 W)
Typical power consumption (30% of traffic load)

  • Tested according to ATIS standard
  • EEE enabled
  • No PoE power consumption
 27.4 W
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) less than 48.6 dBA
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
