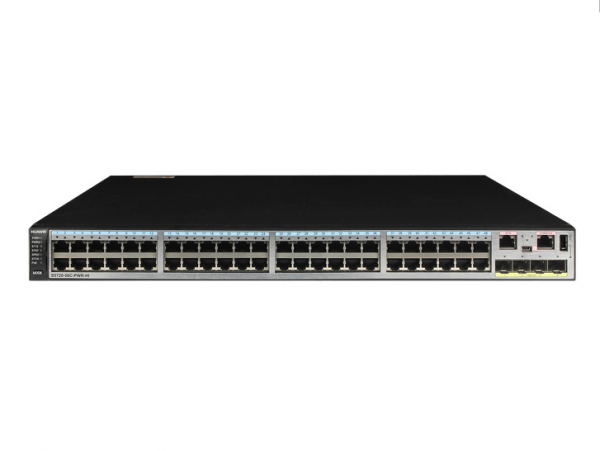

S5720-56C-PWR-HI-AC1

Detail:	S5720-56C-PWR-HI Bundle(48 Ethernet 10/100/1000 POE+ ports,4 10 Gig SFP+,with 2 interface slots,with 580W AC power

AED14,499.00

Huawei S5720-56C-PWR-HI-AC1 is advanced Gigabit Ethernet switch that provides rich agile features, based on Huawei Versatile Routing Platform (VRP). With forty-eight Ethernet 10/100/1,000 ports, and four 10 Gig SFP+, the switch provides the ubiquitous service function to ensure consistent user experience, what’s more, the special PoE function guarantees constant power supply to meet customers’ electricity demand. The Super Virtual Fabric (SVF) function virtualizes the entire network into one device. In addition, the switch supports flexible Ethernet networking, comprehensive VPN tunnel solutions, various security control methods, intelligent deployment, and simple operation and maintenance. The S5720-56C-PWR-HI-AC1 switch is the best choice for the branches of high-quality large- and middle-sized campus networks.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	S5720-56C-HI-AC1
Ports	– 48 x 10/100/1,000 Base-T, – 4 x 10 GE SFP+
Memory (RAM)	4 GB
Flash	400 MB
MAC Address Table Size	128 MAC
Voltage Required	AC: Rated voltage range: 100V to 240V, 50/60 Hz Maximum voltage range: 90V to 264V, 47 Hz/63 Hz
Power Device	A 550W AC power supply
Power Consumption Operational	Without PD: < 188.74W, With PD: < 1,739W (device: 299W, PD: 1,440W)
Forwarding performance	192 Mpps
Switching capacity	598 Gbit/s
Dimensions (W x D x H)	442 mm x 420 mm x 44.4 mm
Weight	10.6 kg

Note:

①	Forty-eight PoE+ 10/100/1000BASE-T ports	②	Four 10GE SFP+ ports
③	USB port	④	USB port
⑤	One mini USB port	⑥	ETH management port

*The ground screw is used with a ground cable.

* You can draw the ESN label out to view the ESN and MAC address of the switch.

*Rear card slot 1 is a reserved stack card slot.

In the back panel of S5720-56C-PWR-HI-AC1 switch, there are ground screw, ESN label, two rear card slots and two power module slots. The ground screw should be used with a ground cable, and you can draw the ESN label out to view the ESN and MAC address of the switch. One rear card slot is a reserved stack card slot.

SKU: S5720-56C-PWR-HI-AC1 Category: Network Switches & Routers

S5720-56C-PWR-HI-AC1 Specification
Fixed Ports	48 x 10/100/1,000 Base-T, 4 x 10 GE SFP+
Extended Slots	One port extended slot with optional subcard 4 x 10 GE SFP+ One slot reserved for the stack card
MAC Address Table	IEEE 802.1d standards compliance 128K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN	4K VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping
Wireless AC	AP access control, AP domain management, and AP configuration template management Radio frequency management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, Tag/terminal location, and spectrum analysis
Reliability	RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover SEP G.8032 Ethernet Ring Protection Switching (ERPS) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection
MPLS	MPLS L3VPN MPLS L2VPN (VPWS/VPLS) MPLS-TE MPLS QoS
IP Routing	Static routes, RIPv1/v2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy
Interoperability	VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST Link-type Negotiation Protocol (LNP), similar with DTP VLAN Central Management Protocol (VCMP), similar with VTP
IPv6 Features	Neighbor Discover (ND) PMTU IPv6 Ping, IPv6 Tracert, IPv6 Telnet ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types Multicast Listener Discovery snooping (MLDv1/v2)
Multicast	IGMPv1/v2/v3 snooping and IGMP prompt leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics collection IGMPv1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM MSDP
QoS/ACL	Rate limitation in the inbound and outbound directions of a port Packet redirection Port-based traffic policing and two-rate and three-color CAR Eight queues on each port DRR, SP and DRR + SP queue scheduling algorithms WRED HQoS Re-marking of the 802.1p and DSCP fields of packets Packet filtering on Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol number, or VLAN Queue-based rate limitation and shaping on ports
Security	Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface number, and VLAN ID Port isolation, port security, and sticky MAC MAC Forced Forwarding (MFF) Blackhole MAC address entries Limitation on the number of learned MAC addresses IEEE 802.1x authentication and limitation on the number of users on a port AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH V2.0 HTTPS CPU protection Blacklist and whitelist DHCP relay/server/snooping/client/security MACSec
OAM	EFM OAM CFM OAM Y.1731 performance monitoring
Super Virtual Fabric (SVF)	Working as the parent node to vertically virtualize downlink switches and APs as one device for management Supports a two-layer client architecture
iPCA	Directly coloring service packets to collect real-time statistics on the number of lost packets and packet loss ratio Collection of statistics on the number of lost packets and packet loss ratio at network and device levels
Management and Maintenance	iStack Virtual Cable Test SNMPv1/v2c/v3 RMON Network management system (NMS) and Web management System logs and multi-level alarms GVRP MUX VLAN 802.3az Energy Efficient Ethernet (EEE) NetStream Dying Gasp upon power-off
Operating Environment	Operating temperature: 0°C to 45°C Relative humidity: 5% to 95% (non-condensing)
Dimensions (W x D x H)	442.0 mm x 420.0 mm x 44.4 mm When a 1,150W power module is installed, it extrudes out from the chassis. Therefore, the total depth of the switch changes to 507 mm
Input Voltage	AC rated voltage: 100V to 240V, 50 Hz/60 Hz Maximum voltage range: 90V to 264V, 47 Hz/63 Hz
Power Consumption	Without PD: < 188.74W, With PD: < 1,739W (device: 299W, PD: 1,440W)
