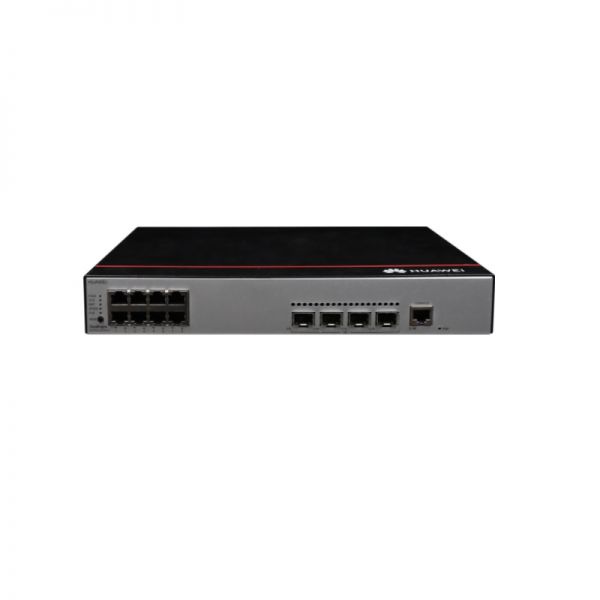

S5735S-L8P4S-A1 Switch

Add to Wishlist
Model: S5735S-L8P4S-A1 Switch
Detail:
S5735S-L8P4S-A1 (8 10/100/1000BASE-T Ethernet ports, 4 Gigabit SFP, PoE+, AC power supply)

AED14,299.00

Add to Wishlist

Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.

Quick Spec

Table 1 shows the quick spec.

Product Model S5735S-L8P4S-A1
Memory 512 MB
Flash memory 512 MB
Typical power consumption [W] 28.4 W
MTTR [hour] 2 hour



SKU: S5735S-L8P4S-A1 Category: Tag:

S5735S-L8P4S-A1 Specification
Typical power consumption [W] 28.4 W
Typical heat dissipation [BTU/hour] 96.9 BTU/hour
Maximum power consumption [W] ·         Not providing the PoE function: 38.6 W

100% PoE loads: 162.6 W (PoE: 124 W)
Maximum heat dissipation [BTU/hour] ·         Not providing the PoE function: 131.71

100% PoE loads: 554.81
MTBF [year] 66.56 year
MTTR [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 42.2 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 30.5 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 1
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) (0 m to 1800 m altitude, non-industrial optical modules)

-5°C to +55°C (23°F to 131°F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km)
Short-term operating temperature [°C(°F)] Not supported
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The switch cannot be started when the ambient temperature is lower than 0°C (32°F).

The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distances greater than or equal to 70 km are used.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A] 3 A
Memory 512 MB
Flash memory 512 MB
Console port RJ45
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Supported
Certification EMC certification

Safety certification

Manufacturing certification
