S6720-26Q-LI-24S-AC – Huawei S6700 Series Switches

Add to Wishlist

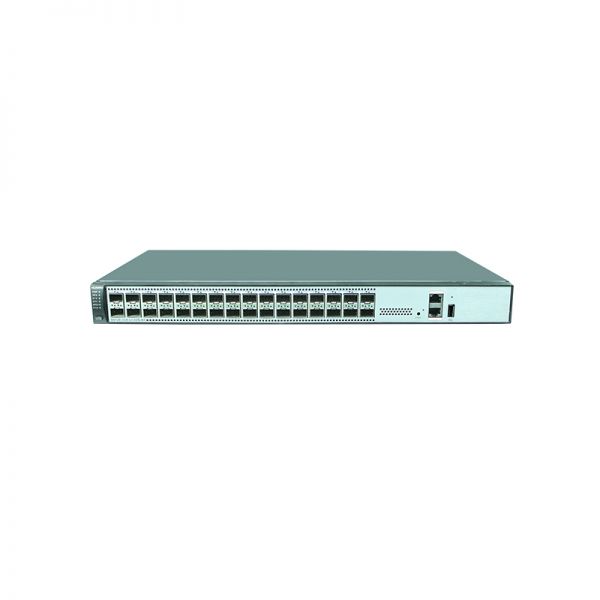

Model: S6720-32X-LI-32S-AC – Huawei S6700 Series Switches
Detail:
S6720-32X-LI-32S-AC(32 10 Gig SFP+,AC 110/220V)

AED18,399.00

Add to Wishlist

Huawei S6720-LI series are next-generation simplified all-10 GE fixed switches and can be used for 10 GE access on campus and data center networks.

Quick Specs

Table 1 shows the Quick Specs.

Product Code S6720-32X-LI-32S-AC
Memory (RAM) 2 GB
Flash 1 GB
Mean time between failures (MTBF) 61.42 years
Mean time to repair (MTTR) 2 hours

Category: Tags: ,

S6720-32X-LI-32S-AC Specification
Item Description
Memory (RAM) 1 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 42.8 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection NA
Power supply surge protection ±6 kV in differential mode, ± 6 kV in common mode
Dimensions (H x W x D)
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 225.0 mm (1.72 in. x 17.4 in. x 8.86 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 234.4 mm (1.72 in. x 17.4 in. x 9.23 in.)
Stack ports Any 10GE SFP+ ports (a maximum of 16 physical ports)
RTC Supported
RPS Supported
PoE Not supported
Rated voltage range 100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans) 108.5 W
Typical power consumption (30% of traffic load, tested according to ATIS standard) 71.8 W
Operating temperature 0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 46.4 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification
  • EMC certification
  • Safety certification
  • Manufacturing certification
